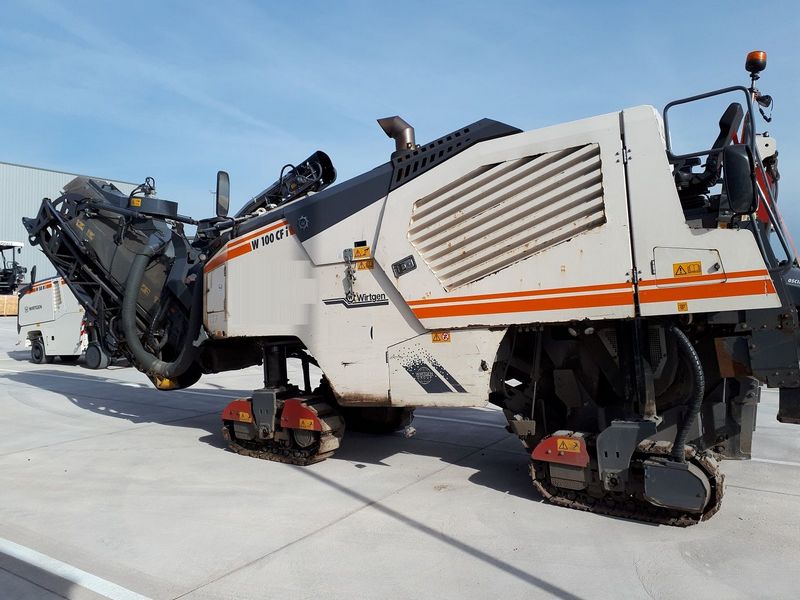

Wirtgen W100
Browse All Wirtgen or Cold Planer Models
Contents:
Conveyor System
| Discharge Conveyor Width | 19.69 in (500 mm) |
| Collecting Conveyor Width | 19.69 in (500 mm) |
Dimensions
| Operating Length | 34.49 ft in (10510 mm) |
| Shipping Width | 7.42 ft in (2260 mm) |
| Shipping Height | 8.7 ft in (2650 mm) |
| Shipping Length | 15.52 ft in (4730 mm) |
| Max Operating Height | 14.97 ft in (4560 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2349 |
| Engine Model | TCD 2012 L06 2V |
| Gross Power | 208 hp (155.2 kw) |
| Power Measured @ | 2300 rpm |
| Displacement | 369.7 cu in (6.1 L) |
Operational
| Operating Weight - Full Load | 33069.4 lb (15000 kg) |
| Shipping Weight - Empty | 29762.5 lb (13500 kg) |
| Fuel Capacity | 118.9 gal (450 L) |
| Hydraulic System Fluid Capacity | 21.2 gal (80 L) |
| Water Spray System Fluid Capacity | 237.8 gal (900 L) |
| Operational Voltage | 24 V |
| Operating Speed | 98.5 ft/min (30 m/min) |
| Travel Speed | 3.8 mph (6 km/h) |
Rotary Cutter
| Cutting Width | 3.3 ft in (1000 mm) |
| Cutting Depth | 11.9 in (300 mm) |
| Cutter Diameter | 36.7 in (930 mm) |
| Number Of Tools | 100 |
| Tool Spacing | 0.6 in (15 mm) |
