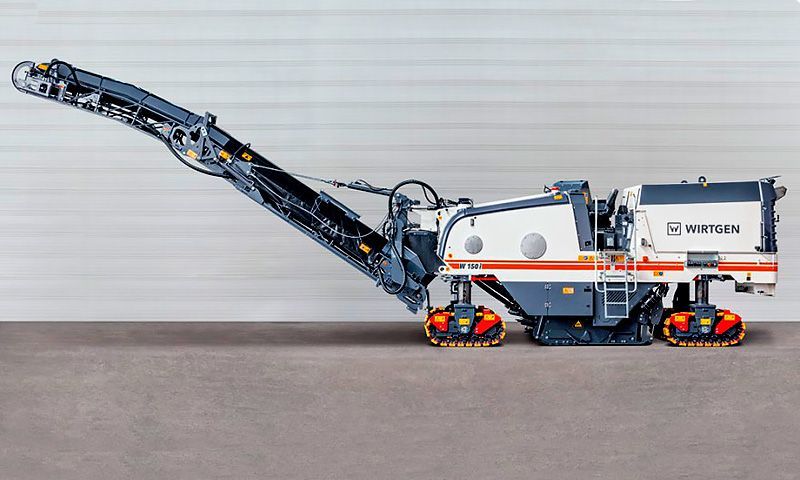

Wirtgen W150
Browse All Wirtgen or Cold Planer Models
Contents:
Conveyor System
| Discharge Conveyor Width | 23.63 in (600 mm) |
| Collecting Conveyor Width | 25.6 in (650 mm) |
Dimensions
| Operating Length | 42.49 ft in (12950 mm) |
| Shipping Width | 8.04 ft in (2450 mm) |
| Shipping Height | 9.85 ft in (3000 mm) |
| Shipping Length | 21.49 ft in (6550 mm) |
| Max Operating Height | 14.77 ft in (4500 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSL9 |
| Gross Power | 370 hp (276 kw) |
| Net Power | 350 hp (261 kw) |
| Power Measured @ | 2100 rpm |
| Displacement | 543.2 cu in (8.9 L) |
Operational
| Operating Weight - Full Load | 47752.2 lb (21660 kg) |
| Shipping Weight - Empty | 41226.5 lb (18700 kg) |
| Fuel Capacity | 214 gal (810 L) |
| Hydraulic System Fluid Capacity | 31.8 gal (120 L) |
| Water Spray System Fluid Capacity | 568 gal (2150 L) |
| Operational Voltage | 24 V |
| Operating Speed | 105 ft/min (32 m/min) |
| Travel Speed | 3.3 mph (5.3 km/h) |
Rotary Cutter
| Cutting Width | 4 ft in (1200 mm) |
| Cutting Depth | 12.6 in (320 mm) |
| Cutter Diameter | 38.6 in (980 mm) |
| Number Of Tools | 115 |
| Tool Spacing | 0.6 in (15 mm) |
Tracks
| Number Of Track Units | 4 |
| Front Track Length | 4.5 ft in (1350 mm) |
| Front Track Width | 10.3 in (260 mm) |
| Rear Track Length | 4.5 ft in (1350 mm) |
| Rear Track Width | 10.3 in (260 mm) |
