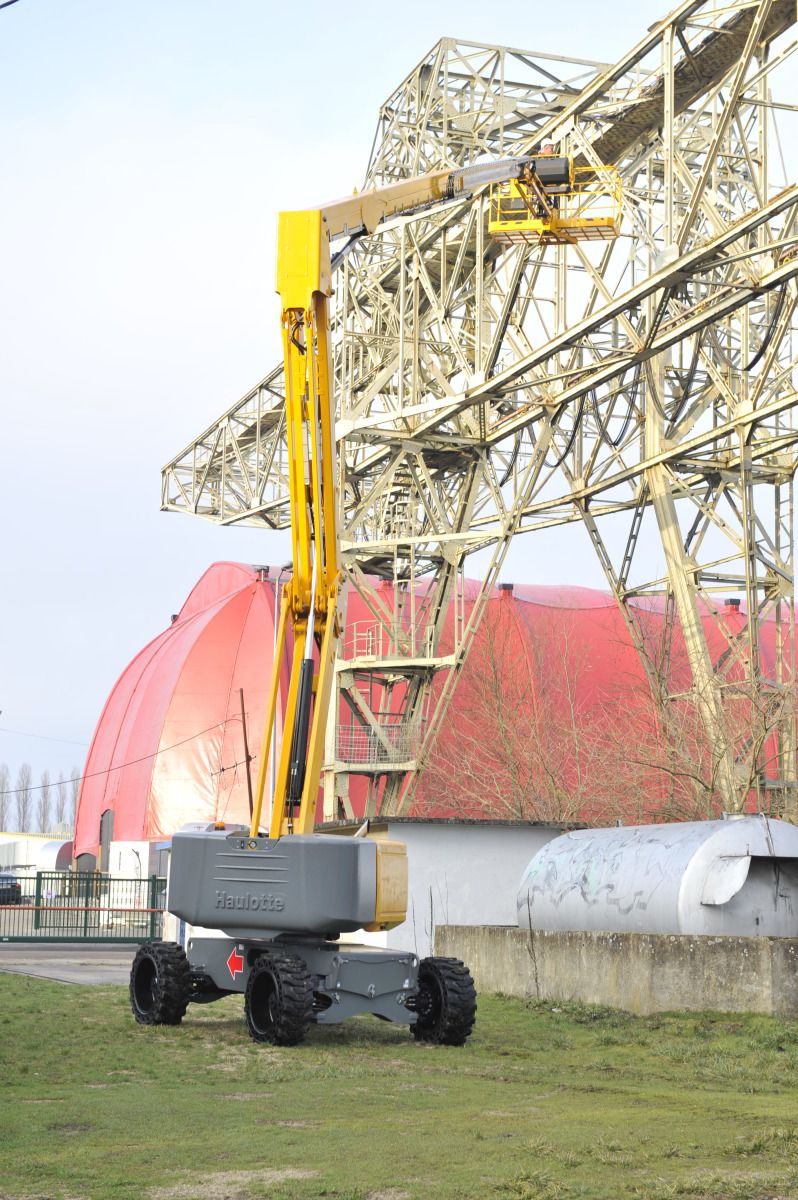

Haulotte HA80 RTJ PRO
Contents:
Dimensions
| Overall Length | 38.8 in (985.52 mm) |
| Overall Width | 8.2 ft in (2499.36 mm) |
| Wheelbase | 9.2 ft in (2804.16 mm) |
| Ground Clearance | 19 in (482.6 mm) |
| Tailswing Radius | 30 ft in (9144 mm) |
| Up And Over Height | 30.6 ft in (9.33 m) |
| Transport Length | 30.1 ft in (9174.48 mm) |
| Gradeability | 45 % |
| Transport Height- Maximum | 9.9 ft in (3.02 m) |
| Tilt Alarm | 4 degrees |
| Turning Radius Outside Tires | 14.3 ft in (4358.65 mm) |
Platform
| Max Platform Height | 80 ft in (24384 mm) |
| Max Horizontal Reach | 57.5 ft in (17526 mm) |
| Wind Rating | 28 mph (45.07 km/h) |
| Max Platform Weight Capacity | 550 lb (249.48 kg) |
| Max Working Height | 86 ft in (26212.8 mm) |
| Maximum No Of Persons | 2 |
| Overall Height (Stowed, Guardrail Folded) | 9.9 ft in (3.02 m) |
| Platform Inner Length | 96 in (2438.4 mm) |
| Platform Inner Width | 36 in (914.4 mm) |
| Platform Rotation | 180 degrees |
Engine
| Emission Tier Level | Tier 4 Fina |
| Engine Model | Kubota |
| Gross Power | 65.2 hp (48.6 kw) |
Operational
| Operating Weight | 34100 lb (15467.6 kg) |
| Fuel Capacity | 21 gal (79.5 L) |
| Hydraulic System Fluid Capacity | 37 gal (140.1 L) |
| Max Speed | 3.1 mph (5 km/h) |
| Tire Size | Cured on 40.4 x 14.4 |
| Tire Fill/Type | solid rough terrain |
Electrical
| Battery | 12V |
