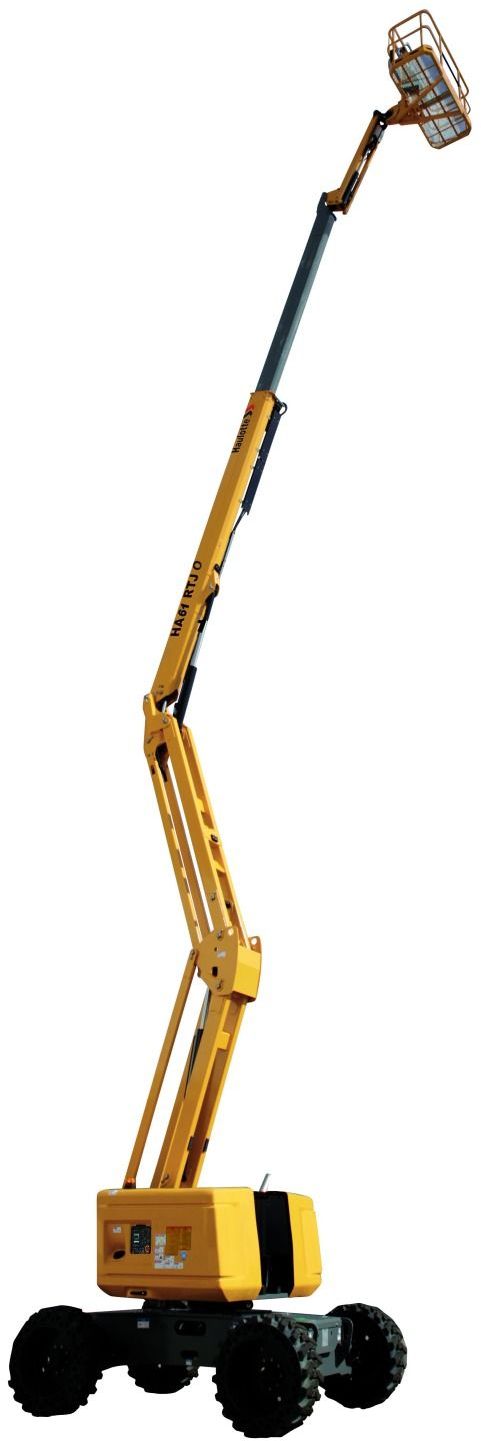

Haulotte HA61 RTJ O
Contents:
Dimensions
| Overall Length | 28.1 in (713.74 mm) |
| Overall Width | 7.11 ft in (2167.13 mm) |
| Wheelbase | 8 ft in (2438.4 mm) |
| Ground Clearance | 15 in (381 mm) |
| Gradeability | 45 % |
| Horizontal Reach | 40 ft in (12.2 m) |
| Tailswing Radius | 5.6 ft in (1706.88 mm) |
| Tilt Alarm | 5 degrees |
| Transport Height- Maximum | 9.7 ft in (2.96 m) |
| Transport Length | 21.4 ft in (6522.72 mm) |
| Turning Radius Outside Tires | 13.1 ft in (3992.88 mm) |
| Up And Over Height | 27.7 ft in (8.45 m) |
Platform
| Max Platform Height | 61 ft in (18592.8 mm) |
| Max Horizontal Reach | 40 ft in (12192 mm) |
| Max Working Height | 67.7 ft in (20634.96 mm) |
| Maximum No Of Persons | 2 |
| Overall Height (Stowed, Guardrail Folded) | 8.31 ft in (2.53 m) |
| Max Platform Weight Capacity | 500 lb (226.8 kg) |
| Platform Inner Width | 36 in (914.4 mm) |
| Platform Inner Length | 96 in (2438.4 mm) |
| Wind Rating | 37 mph (59.55 km/h) |
Engine
| Emission Tier Level | Tier 4 Final |
| Engine Model | Kubota |
| Gross Power | 65.2 hp (48.6 kw) |
Operational
| Operating Weight | 21572 lb (9784.9 kg) |
| Max Speed | 3.1 mph (5 km/h) |
| Tire Size | 33.5 x 13.4 |
| Tire Fill/Type | solid rough terrain |
Electrical
| Battery | 12V |
