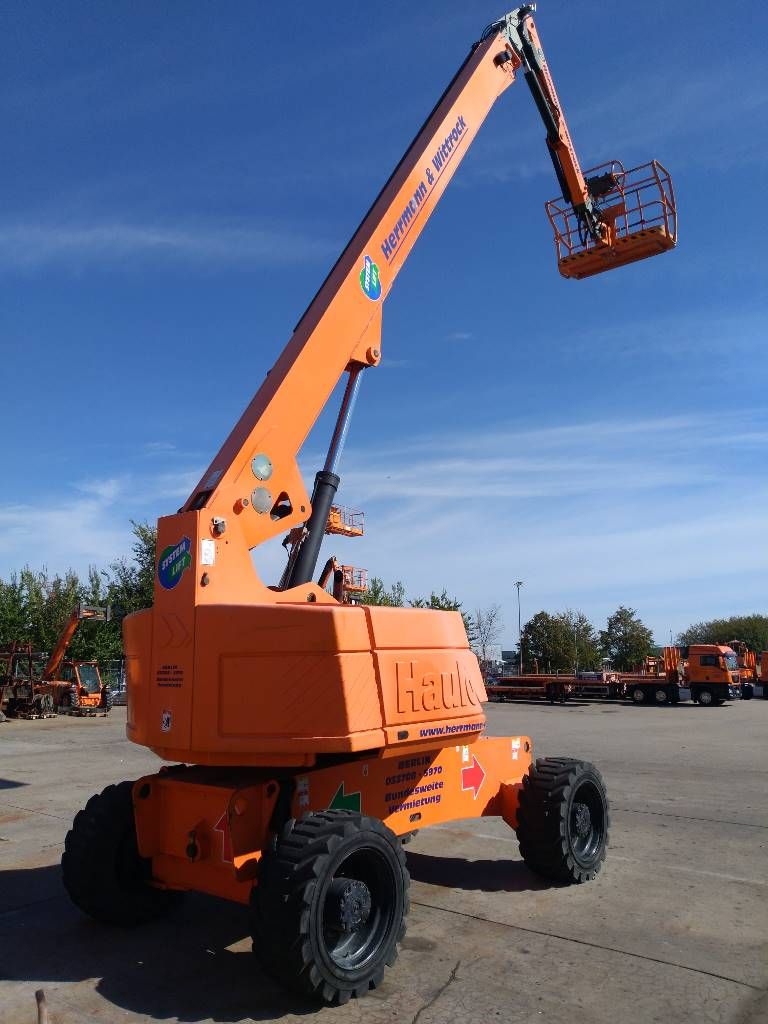

Haulotte H28TJ
Contents:
Dimensions
| Overall Length | 40.52 in (12350 mm) |
| Overall Width | 8.17 ft in (2490 mm) |
| Overall Height - Mast Lowered | 9.68 ft in (2950 mm) |
| Wheelbase | 9.85 ft in (3000 mm) |
| Ground Clearance | 21.26 in (540 mm) |
| Turning Radius | 24.45 ft in (7450 mm) |
Platform
| Max Platform Height | 85.96 ft in (26200 mm) |
| Max Horizontal Reach | 74.15 ft in (22600 mm) |
| Platform Rotation | 180 degrees |
| Platform Inner Length | 70.87 in (1800 mm) |
| Max Platform Weight Capacity | 771.62 lb (350 kg) |
| Max Working Height | 92.52 ft in (28200 mm) |
| Platform Inner Width | 31.5 in (800 mm) |
Engine
| Engine Make | 0 |
| Gross Power | 73.8 hp (55 kw) |
Operational
| Operating Weight | 38140 lb (17300 kg) |
| Max Speed | 2 mph (3.1 km/h) |
| Tire Size | 18-625 |
| Tire Fill/Type | foam filled |
