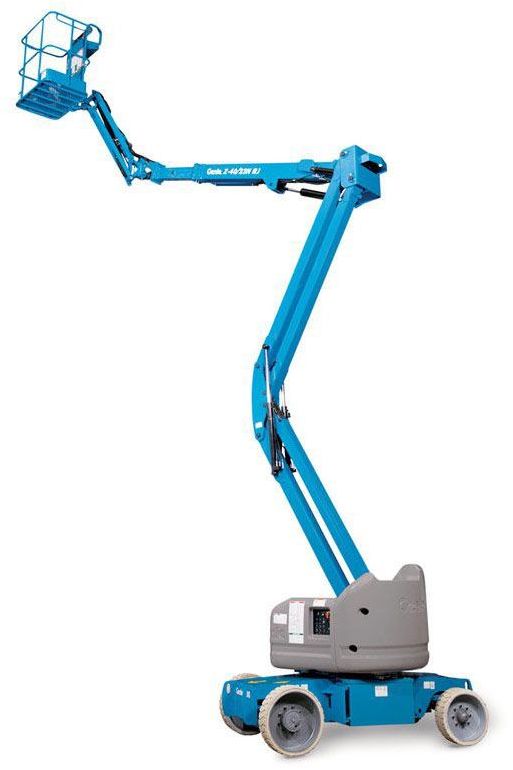

Genie Z40/23NRJ
Contents:
Dimensions
| Overall Length | 21.43 in (6530 mm) |
| Overall Width | 4.93 ft in (1500 mm) |
| Overall Height - Mast Lowered | 6.5 ft in (1980 mm) |
| Wheelbase | 6.44 ft in (1960 mm) |
| Ground Clearance | 7.09 in (180 mm) |
| Turning Radius | 10.5 ft in (3200 mm) |
Platform
| Max Platform Height | 40.42 ft in (12320 mm) |
| Max Horizontal Reach | 22.68 ft in (6910 mm) |
| Platform Rotation | 180 degrees |
| Platform Inner Length | 46.07 in (1170 mm) |
| Max Platform Weight Capacity | 500.45 lb (227 kg) |
| Max Working Height | 46.99 ft in (14320 mm) |
| Platform Inner Width | 29.93 in (760 mm) |
Engine
| Engine Make | 0 |
| System Voltage | 48 V |
| Number Of Batteries | 8 |
| Battery Amp Hours | 315 |
Operational
| Operating Weight | 15300.1 lb (6940 kg) |
| Hydraulic System Fluid Capacity | 8 gal (30.2 L) |
| Max Speed | 4.5 mph (7.2 km/h) |
| Tire Size | front: 22x7x17.75, rear: 25.6x7 |
| Tire Fill/Type | Solid, non-marking |
