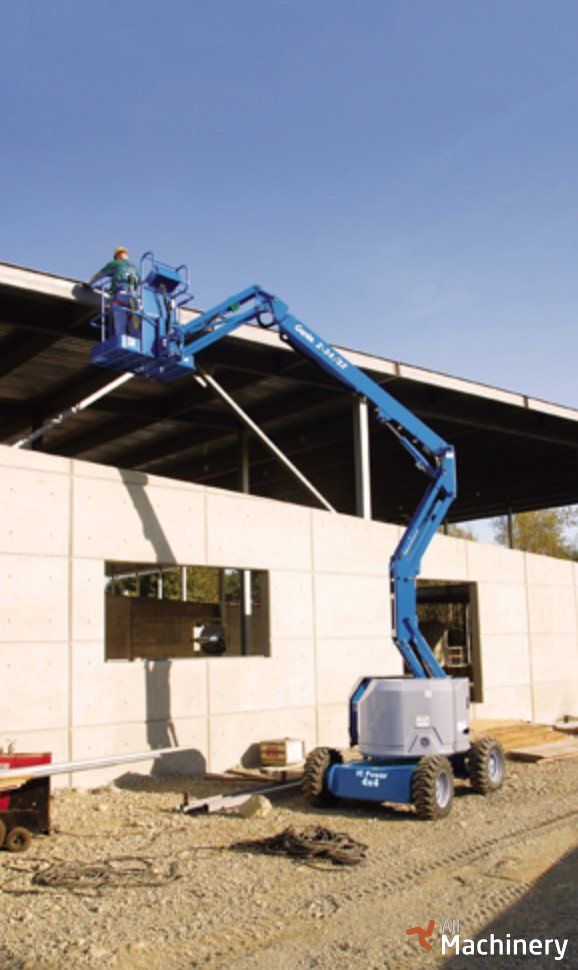

Genie Z34/22 IC 2wd
Contents:
Dimensions
| Overall Length | 18.51 in (5640 mm) |
| Overall Width | 5.68 ft in (1730 mm) |
| Overall Height - Mast Lowered | 6.57 ft in (2000 mm) |
| Wheelbase | 6.17 ft in (1880 mm) |
| Ground Clearance | 5.91 in (150 mm) |
| Turning Radius | 13.06 ft in (3980 mm) |
Platform
| Max Platform Height | 34.52 ft in (10520 mm) |
| Max Horizontal Reach | 22.25 ft in (6780 mm) |
| Platform Rotation | 180 degrees |
| Platform Inner Length | 55.91 in (1420 mm) |
| Max Platform Weight Capacity | 500.45 lb (227 kg) |
| Max Working Height | 41.08 ft in (12520 mm) |
| Platform Inner Width | 29.93 in (760 mm) |
Engine
| Engine Make | 2334 |
| Engine Model | DF-972 |
| Gross Power | 32.2 hp (24 kw) |
Operational
| Operating Weight | 10150.1 lb (4604 kg) |
| Fuel Capacity | 9.1 gal (34.1 L) |
| Hydraulic System Fluid Capacity | 19 gal (71.9 L) |
| Max Speed | 3 mph (4.8 km/h) |
| Tire Size | 9x14.5 |
| Tire Fill/Type | Solid, non-marking |
