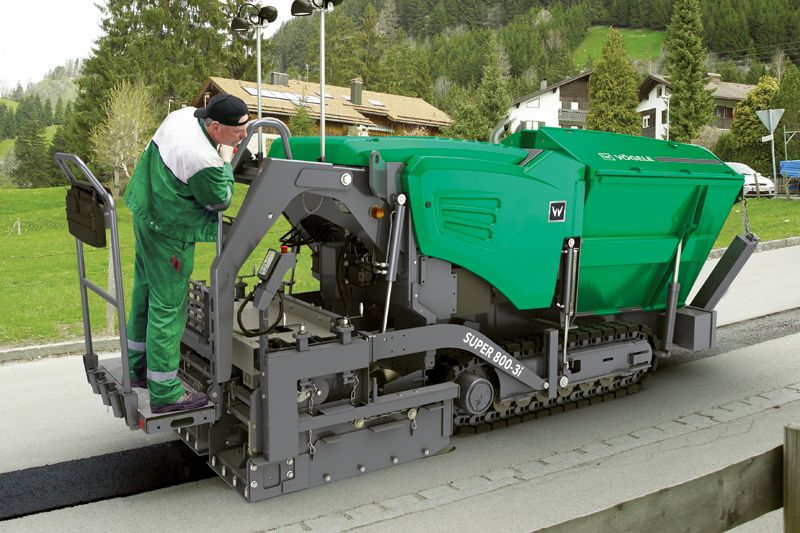

Vogele Super 800
Browse All Vogele or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 14.31 ft in (4360 mm) |
| Transport Height | 6.76 ft in (2060 mm) |
| Length Of Track On Ground | 4.93 ft in (1500 mm) |
| Track Width | 7.09 in (180 mm) |
| Width W/ Hopper Open | 9.42 ft in (2870 mm) |
Engine
| Engine Make | 2349 |
| Engine Model | TCD 2011 L03 |
| Gross Power | 60.4 hp (45 kw) |
| Power Measured @ | 2300 rpm |
Operational
| Operating Weight W/ Screed | 13448.2 lb (6100 kg) |
| Fuel Capacity | 19.9 gal (75 L) |
| Operating Voltage | 24 V |
Hopper/Paver
| Paving Width - Std | 3.7 ft in (1100 mm) |
| Paving Width - Max | 10.5 ft in (3200 mm) |
| Paving Thickness - Max | 7.9 in (200 mm) |
| Paving Speed - Max | 196.9 ft/min (60 m/min) |
| Auger Diameter | 11.9 in (300 mm) |
