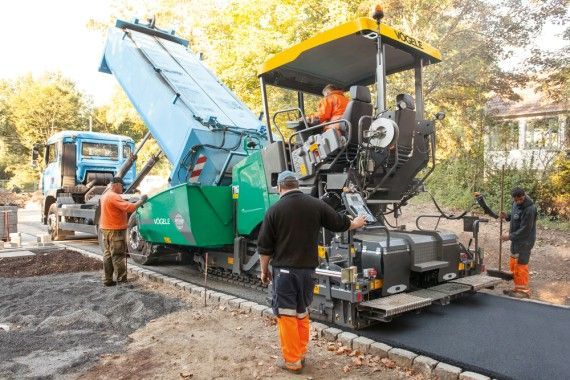

Vogele Super 1100-2
Browse All Vogele or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 16.25 ft in (4950 mm) |
| Transport Height | 9.85 ft in (3000 mm) |
| Length Of Track On Ground | 6.57 ft in (2000 mm) |
| Track Width | 10.24 in (260 mm) |
| Width W/ Hopper Open | 10.83 ft in (3300 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2349 |
| Engine Model | TCD2011L04w |
| Gross Power | 77.8 hp (58 kw) |
| Power Measured @ | 2300 rpm |
Operational
| Operating Weight W/ Screed | 18739.3 lb (8500 kg) |
| Fuel Capacity | 31.8 gal (120 L) |
| Operating Voltage | 24 V |
Hopper/Paver
| Paving Width - Std | 6 ft in (1800 mm) |
| Paving Width - Max | 13.8 ft in (4200 mm) |
| Paving Thickness - Max | 7.9 in (200 mm) |
| Paving Speed - Max | 98.5 ft/min (30 m/min) |
| Travel Speed - Max | 2.3 mph (3.6 km/h) |
| Auger Diameter | 11.9 in (300 mm) |
