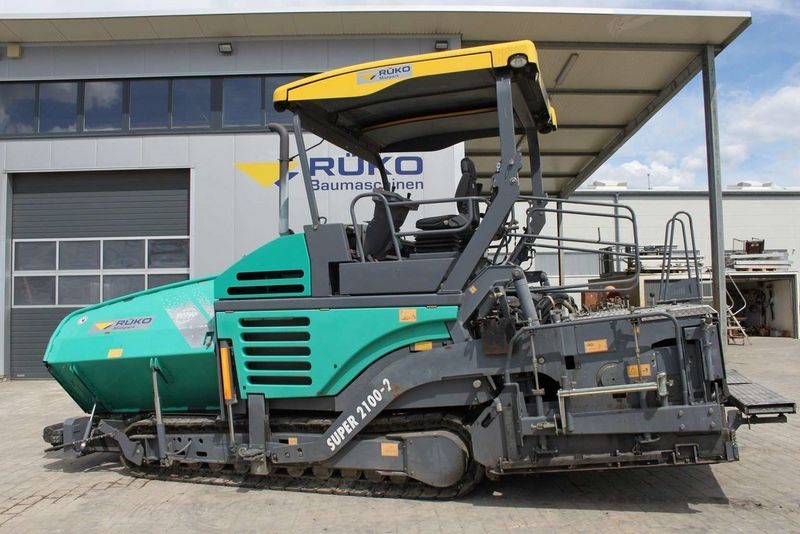

Vogele Super 2100-2
Browse All Vogele or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 21.66 ft in (6600 mm) |
| Transport Height | 10.01 ft in (3050 mm) |
| Length Of Track On Ground | 10.04 ft in (3060 mm) |
| Length W/O Screed | 17.64 ft in (5375 mm) |
| Track Width | 12.01 in (305 mm) |
| Width W/ Hopper Open | 10.72 ft in (3265 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2349 |
| Engine Model | TCD 2013 L06 2V |
| Gross Power | 244.1 hp (182 kw) |
| Power Measured @ | 2000 rpm |
Operational
| Operating Weight W/ Screed | 47179 lb (21400 kg) |
| Fuel Capacity | 118.9 gal (450 L) |
| Operating Voltage | 24 V |
Hopper/Paver
| Paving Width - Std | 8.4 ft in (2550 mm) |
| Paving Width - Max | 27.9 ft in (8500 mm) |
| Paving Thickness - Max | 11.9 in (300 mm) |
| Paving Speed - Max | 82.1 ft/min (25 m/min) |
| Travel Speed - Max | 2.8 mph (4.5 km/h) |
| Auger Diameter | 18.9 in (480 mm) |
