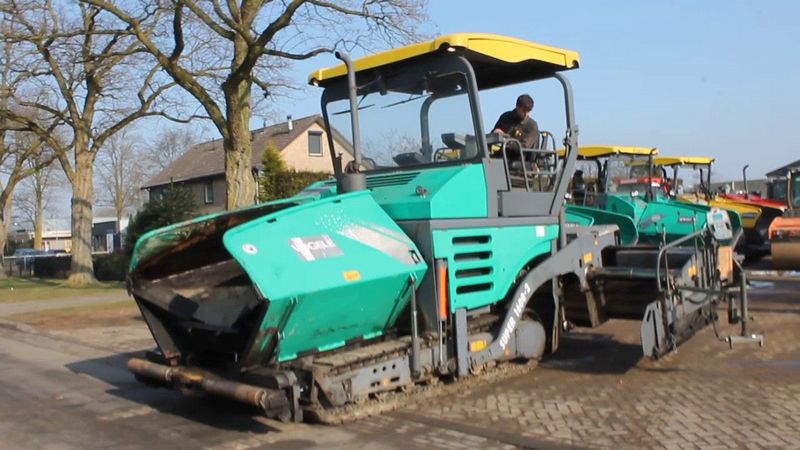

Vogele Super 1600-2
Browse All Vogele or Asphalt Paver Models
Contents:
Dimensions
| Length W/ Screed | 19.69 ft in (6000 mm) |
| Transport Height | 10.18 ft in (3100 mm) |
| Length Of Track On Ground | 9.29 ft in (2830 mm) |
| Length W/O Screed | 15.61 ft in (4757 mm) |
| Track Width | 12.01 in (305 mm) |
| Width W/ Hopper Open | 10.72 ft in (3265 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2351 |
| Engine Model | 1104D-E44TA |
| Gross Power | 134.2 hp (100 kw) |
| Power Measured @ | 2000 rpm |
Operational
| Operating Weight W/ Screed | 40565.1 lb (18400 kg) |
| Fuel Capacity | 79.3 gal (300 L) |
| Operating Voltage | 24 V |
Hopper/Paver
| Paving Width - Std | 8.4 ft in (2550 mm) |
| Paving Width - Max | 26.3 ft in (8000 mm) |
| Paving Thickness - Max | 11.9 in (300 mm) |
| Paving Speed - Max | 78.8 ft/min (24 m/min) |
| Travel Speed - Max | 2.8 mph (4.5 km/h) |
| Auger Diameter | 15.8 in (400 mm) |
