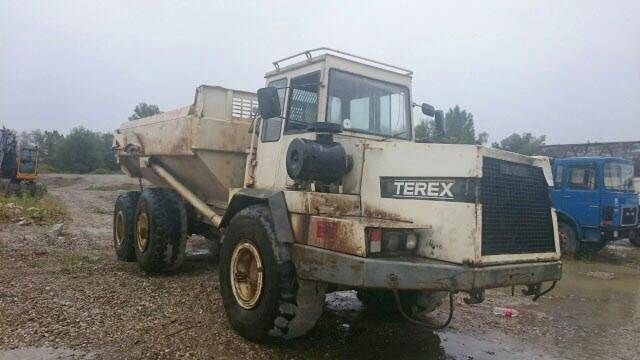

Terex TA25
Browse All Terex or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 32.16 ft in (9800 mm) |
| Overall Width | 9.85 ft in (3000 mm) |
| Overall Height | 11.49 ft in (3500 mm) |
| Wheelbase | 16.57 ft in (5050 mm) |
| Ground Clearance | 1.33 ft in (405 mm) |
| Dump Height | 19.69 ft in (6000 mm) |
| Dump Ground Clearance | 2.38 ft in (725 mm) |
Dump
| Dump Angle | 65 degrees |
| Lower Time | 7.5 sec |
| Rated Payload | 50710 lb (23001.67 kg) |
| Capacity - Struck | 13.08 yd3 (10 m3) |
| Raise Time | 12 sec |
| Capacity - Heaped | 17.66 yd3 (13.5 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2347 |
| Engine Model | QSC 8.3 |
| Gross Power | 280 hp (208.8 kw) |
| Net Power | 266 hp (198.4 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 907 lb ft (1229.8 Nm) |
| Torque Measured @ | 1300 rpm |
| Aspiration | turbocharged |
| Displacement | 505 cu in (8.3 L) |
Operational
| Fuel Capacity | 103.1 gal (390 L) |
| Hydraulic System Fluid Capacity | 53.4 gal (202 L) |
| Cooling System Fluid Capacity | 14.6 gal (55 L) |
| Engine Oil Capacity | 5.3 gal (20 L) |
| Transmission Fluid Capacity | 14.3 gal (54 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Tire Size | 23.5R25 |
Transmission
| Transmission Type | ZF 6WG 210 |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
| Max Speed | 32.4 mph (52 km/h) |
Weights
| Center Axle - Empty | 10890 % |
| Front Axle - Empty | 24050 lb (10908.9 kg) |
| Rear Axle - Empty | 11070 lb (5021.3 kg) |
| Front Axle - Loaded | 32210 % |
| Center Axle - Loaded | 32100 % |
| Rear Axle - Loaded | 32410 lb (14701 kg) |
| Total Empty | 46010 lb (20869.8 kg) |
| Total Loaded | 96720 lb (43871.5 kg) |
