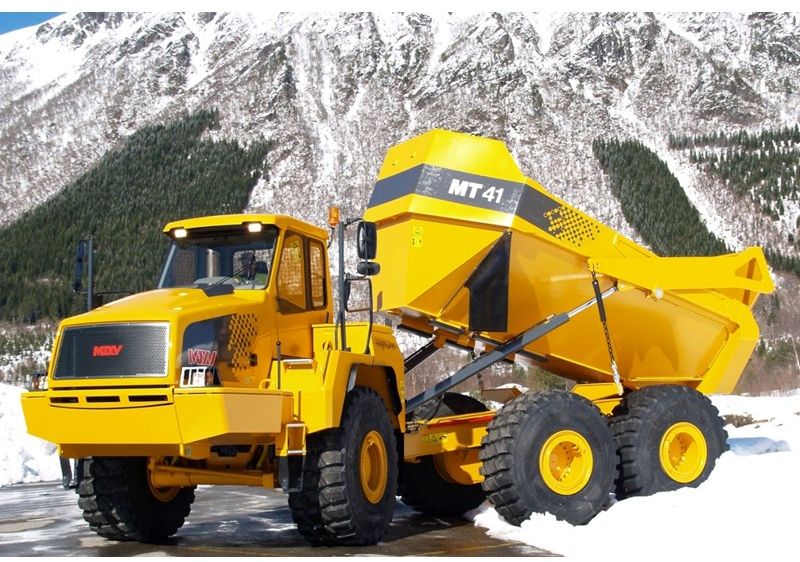

Moxy MT41
Browse All Moxy or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 34.29 ft in (10450 mm) |
| Overall Width | 11.41 ft in (3475 mm) |
| Overall Height | 12.47 ft in (3800 mm) |
| Wheelbase | 17.59 ft in (5360 mm) |
| Ground Clearance | 2.14 ft in (652 mm) |
| Dump Height | 21.48 ft in (6545 mm) |
| Dump Ground Clearance | 2.63 ft in (800 mm) |
Dump
| Dump Angle | 70 degrees |
| Lower Time | 11 sec |
| Rated Payload | 82011.97 lb (37200 kg) |
| Capacity - Struck | 24.2 yd3 (18.5 m3) |
| Raise Time | 12 sec |
| Capacity - Heaped | 31.4 yd3 (24 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2369 |
| Engine Model | DC 12 |
| Gross Power | 443.9 hp (331 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1367.5 lb ft (1854 Nm) |
| Torque Measured @ | 1200 rpm |
| Aspiration | Turbocharged |
| Displacement | 714 cu in (11.7 L) |
Operational
| Fuel Capacity | 129.5 gal (490 L) |
| Hydraulic System Fluid Capacity | 72.7 gal (275 L) |
| Cooling System Fluid Capacity | 13.3 gal (50 L) |
| Engine Oil Capacity | 3.5 gal (13.2 L) |
| Transmission Fluid Capacity | 14.6 gal (55 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Tire Size | 29.5R25 |
Transmission
| Transmission Type | ZF 6 WG 310 Dash 4 electronically-controlled automatic |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
| Max Speed | 33 mph (53 km/h) |
Weights
| Front Axle - Empty | 30754.5 lb (13950 kg) |
| Rear Axle - Empty | 29101.1 lb (13200 kg) |
| Front Axle - Loaded | 44092.5 % |
| Rear Axle - Loaded | 97775.1 lb (44350 kg) |
| Total Empty | 59855.6 lb (27150 kg) |
| Total Loaded | 141867.5 lb (64350 kg) |
