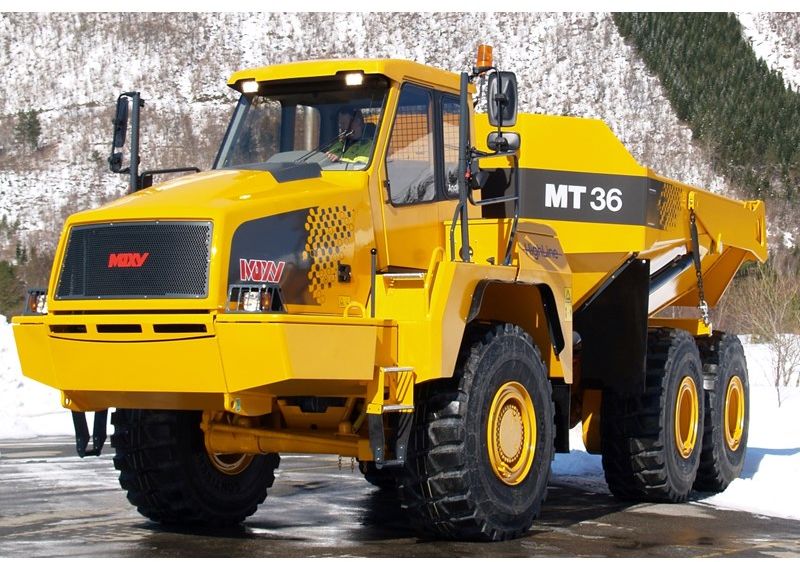

Moxy MT36
Browse All Moxy or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 34.29 ft in (10450 mm) |
| Overall Width | 10.75 ft in (3275 mm) |
| Overall Height | 21.17 ft in (6450 mm) |
| Wheelbase | 17.59 ft in (5360 mm) |
| Ground Clearance | 1.93 ft in (587 mm) |
| Dump Height | 21.17 ft in (6450 mm) |
| Dump Ground Clearance | 2.14 ft in (652 mm) |
Dump
| Dump Angle | 70 degrees |
| Lower Time | 11 sec |
| Rated Payload | 72091.17 lb (32700 kg) |
| Capacity - Struck | 20.93 yd3 (16 m3) |
| Raise Time | 12 sec |
| Capacity - Heaped | 27.47 yd3 (21 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2369 |
| Engine Model | DC 12 |
| Gross Power | 442.6 hp (330 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 1140.3 lb ft (1546 Nm) |
| Torque Measured @ | 1600 rpm |
| Aspiration | turbocharged |
| Displacement | 714 cu in (11.7 L) |
Operational
| Fuel Capacity | 112.3 gal (425 L) |
| Hydraulic System Fluid Capacity | 66.1 gal (250 L) |
| Cooling System Fluid Capacity | 13.3 gal (50 L) |
| Engine Oil Capacity | 3.5 gal (13.2 L) |
| Transmission Fluid Capacity | 14.6 gal (55 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Tire Size | 26.5R25 |
Transmission
| Transmission Type | ZF 6 WG 310 Dash 4 electronically-controlled automatic |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 2 |
| Max Speed | 31.7 mph (51 km/h) |
Weights
| Front Axle - Empty | 29542 lb (13400 kg) |
| Rear Axle - Empty | 29321.5 lb (13300 kg) |
| Front Axle - Loaded | 42990.2 % |
| Rear Axle - Loaded | 87964.5 lb (39900 kg) |
| Total Empty | 58863.5 lb (26700 kg) |
| Total Loaded | 130954.6 lb (59400 kg) |
