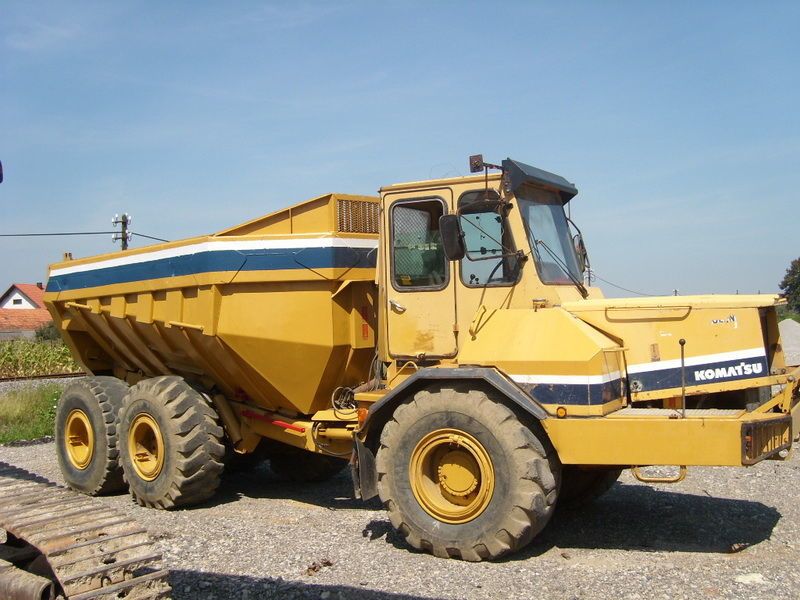

Komatsu HA270-3
Contents:
| Overall Length | 30.52 ft in (9300 mm) |
| Overall Width | 8.7 ft in (2650 mm) |
| Overall Height | 11.23 ft in (3420 mm) |
| Wheelbase | 13.08 ft in (3985 mm) |
| Ground Clearance | 1.66 ft in (505 mm) |
| Dump Height | 20.84 ft in (6350 mm) |
| Capacity - Heaped | 21.06 yd3 (16.11 m3) |
| Rated Payload | 59524.82 lb (27000 kg) |
| Number Of Cylinders | 6 |
| Engine Make | 2238 |
| Engine Model | S6D125 |
| Gross Power | 248.1 hp (185 kw) |
| Net Power | 240 hp (179 kw) |
| Power Measured @ | 2200 rpm |
| Displacement | 671.3 cu in (11 L) |
| Fuel Capacity | 66.1 gal (250 L) |
| Tire Size | 23.5-25 |
| Number Of Forward Gears | 6 |
| Max Speed | 32.4 mph (52 km/h) |
| Front Axle - Empty | 19731.4 lb (8950 kg) |
| Rear Axle - Empty | 19731.4 lb (8950 kg) |
| Front Axle - Loaded | 33289.9 % |
| Rear Axle - Loaded | 65697.8 lb (29800 kg) |
| Total Empty | 39462.8 lb (17900 kg) |
| Total Loaded | 98987.6 lb (44900 kg) |
