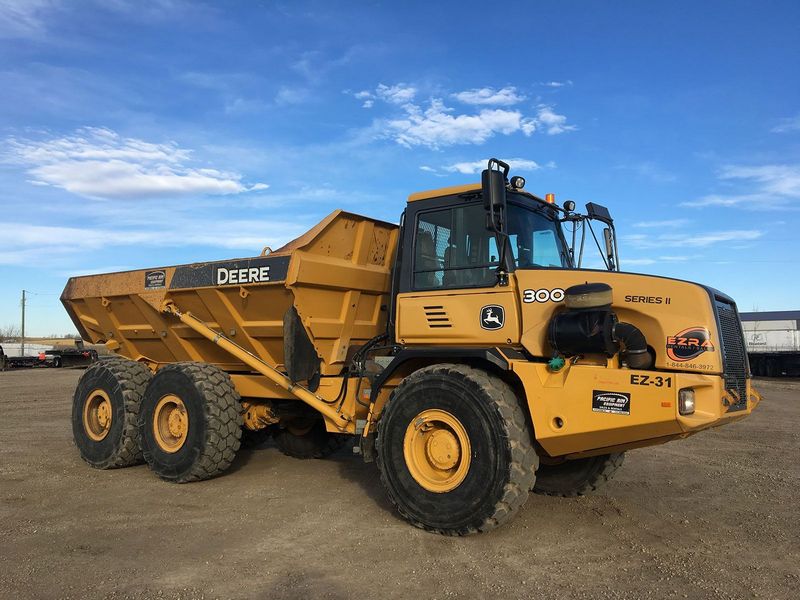

John Deere 300D
Browse All John Deere or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 31.44 ft in (9580 mm) |
| Overall Width | 9.68 ft in (2950 mm) |
| Overall Height | 11.42 ft in (3480 mm) |
| Wheelbase | 16.44 ft in (5010 mm) |
| Ground Clearance | 1.42 ft in (430 mm) |
| Dump Height | 20.35 ft in (6200 mm) |
| Dump Ground Clearance | 1.68 ft in (510 mm) |
Dump
| Dump Angle | 70 degrees |
| Lower Time | 6 sec |
| Rated Payload | 60186.2 lb (27300 kg) |
| Capacity - Struck | 16.49 yd3 (12.6 m3) |
| Raise Time | 11.9 sec |
| Capacity - Heaped | 21.72 yd3 (16.61 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6090 |
| Net Power | 285 hp (212.6 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 789 lb ft (1069.8 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharger charge air cooled |
| Displacement | 549 cu in (9 L) |
Operational
| Fuel Capacity | 90 gal (340 L) |
| Hydraulic System Fluid Capacity | 20.8 gal (79 L) |
| Cooling System Fluid Capacity | 8.7 gal (32.9 L) |
| Engine Oil Capacity | 6.7 gal (25.5 L) |
| Transmission Fluid Capacity | 5.8 gal (21.8 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Tire Size | 23.5R25 |
Transmission
| Transmission Type | ZF 6HP592C fully automatic |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 1 |
| Max Speed | 31 mph (50 km/h) |
Weights
| Center Axle - Empty | 10031.1 % |
| Front Axle - Empty | 22950.2 lb (10410 kg) |
| Rear Axle - Empty | 10009 lb (4540 kg) |
| Front Axle - Loaded | 30975 % |
| Center Axle - Loaded | 36266.1 % |
| Rear Axle - Loaded | 35935.4 lb (16300 kg) |
| Total Empty | 42990.2 lb (19500 kg) |
| Total Loaded | 103176.4 lb (46800 kg) |
