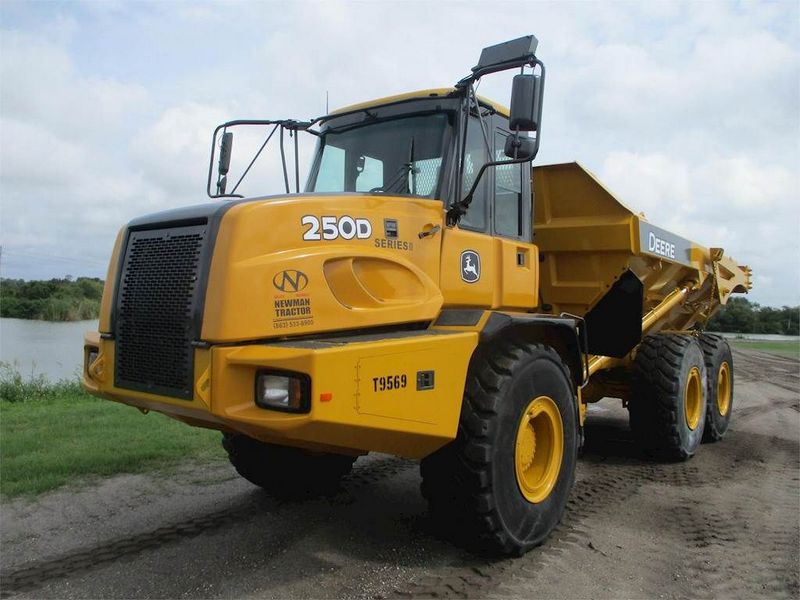

John Deere 250D
Browse All John Deere or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 31.17 ft in (9500 mm) |
| Overall Width | 9.26 ft in (2820 mm) |
| Overall Height | 11.42 ft in (3480 mm) |
| Wheelbase | 16.44 ft in (5010 mm) |
| Ground Clearance | 1.42 ft in (430 mm) |
| Dump Height | 20.08 ft in (6120 mm) |
| Dump Ground Clearance | 1.91 ft in (580 mm) |
Dump
| Dump Angle | 70 degrees |
| Lower Time | 6 sec |
| Rated Payload | 51150 lb (23200 kg) |
| Capacity - Struck | 13.7 yd3 (10.5 m3) |
| Raise Time | 11.9 sec |
| Capacity - Heaped | 18 yd3 (13.8 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2240 |
| Engine Model | 6090 |
| Net Power | 265 hp (197.7 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 789 lb ft (1069.8 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharger charge air cooled |
| Displacement | 549 cu in (9 L) |
Operational
| Fuel Capacity | 90 gal (340 L) |
| Hydraulic System Fluid Capacity | 20.8 gal (79 L) |
| Cooling System Fluid Capacity | 8.7 gal (32.9 L) |
| Engine Oil Capacity | 6.7 gal (25.5 L) |
| Transmission Fluid Capacity | 5.8 gal (21.8 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Tire Size | 23.5R25 |
Transmission
| Transmission Type | ZF 6HP592C fully automatic |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 1 |
| Max Speed | 31 mph (50 km/h) |
Weights
| Center Axle - Empty | 8994.9 % |
| Front Axle - Empty | 22354.9 lb (10140 kg) |
| Rear Axle - Empty | 8972.9 lb (4070 kg) |
| Front Axle - Loaded | 29012.9 % |
| Center Axle - Loaded | 31393.9 % |
| Rear Axle - Loaded | 31085.2 lb (14100 kg) |
| Total Empty | 40344.6 lb (18300 kg) |
| Total Loaded | 91491.9 lb (41500 kg) |
