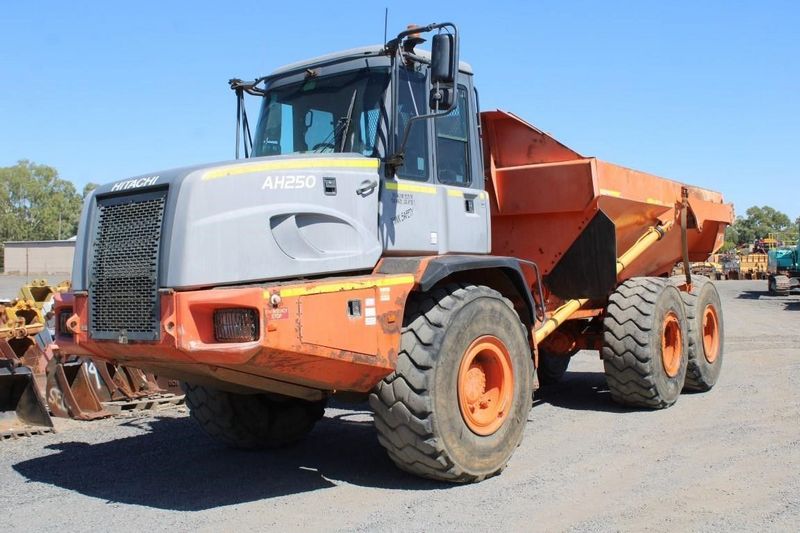

Hitachi AH250D
Browse All Hitachi or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 31.18 ft in (9501 mm) |
| Overall Width | 9.45 ft in (2880 mm) |
| Overall Height | 11.24 ft in (3425 mm) |
| Wheelbase | 16.45 ft in (5012 mm) |
| Ground Clearance | 1.73 ft in (525 mm) |
| Dump Height | 20.1 ft in (6126 mm) |
| Dump Ground Clearance | 2.17 ft in (661 mm) |
Dump
| Dump Angle | 70 degrees |
| Lower Time | 6 sec |
| Rated Payload | 51147.25 lb (23200 kg) |
| Capacity - Struck | 13.74 yd3 (10.5 m3) |
| Raise Time | 12 sec |
| Capacity - Heaped | 18.05 yd3 (13.8 m3) |
Engine
| Engine Make | 2346 |
| Engine Model | MercedesBenz OM906LA |
| Gross Power | 275 hp (205 kw) |
| Net Power | 265 hp (198 kw) |
| Max Torque | 970 lb ft (- Nm) |
| Aspiration | Turbocharged & intercooled |
| Displacement | 388.8 cu in (6.4 L) |
Operational
| Fuel Capacity | 89.9 gal (340 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Tire Size | 23.5R25 Radial Earthmover |
Transmission
| Transmission Type | ZF 6HP592C with integral retarder |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 1 |
| Max Speed | 33 mph (53 km/h) |
Weights
| Center Axle - Empty | 9149.2 % |
| Front Axle - Empty | 20613.3 lb (9350 kg) |
| Rear Axle - Empty | 8818.5 lb (4000 kg) |
| Front Axle - Loaded | 27337.4 % |
| Center Axle - Loaded | 31360.8 % |
| Rear Axle - Loaded | 31030.1 lb (14075 kg) |
| Total Empty | 38580.9 lb (17500 kg) |
| Total Loaded | 89728.2 lb (40700 kg) |
