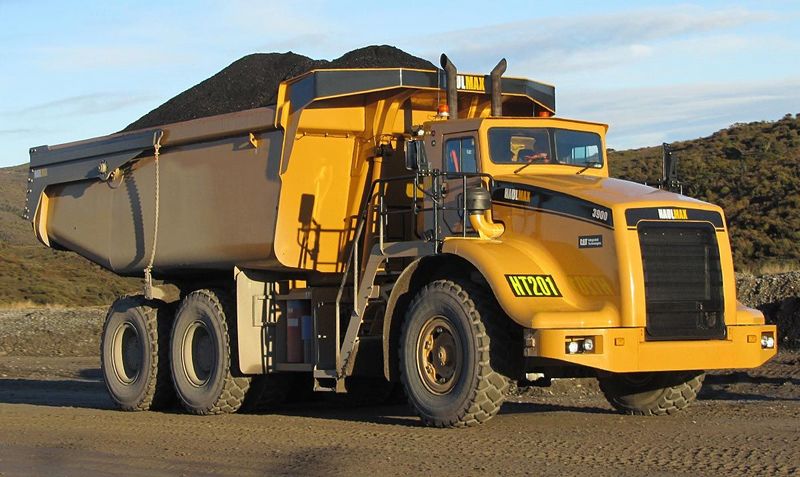

Haulmax 3900D
Browse All Haulmax or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 47.96 ft in (14617 mm) |
| Overall Width | 13.78 ft in (4200 mm) |
| Overall Height | 14.22 ft in (4333 mm) |
| Wheelbase | 25.79 ft in (7859 mm) |
| Ground Clearance | 2.03 ft in (616 mm) |
| Dump Height | 31.34 ft in (9551 mm) |
| Dump Ground Clearance | 2.21 ft in (672 mm) |
Dump
| Dump Angle | 55 degrees |
| Lower Time | 15 sec |
| Capacity - Heaped | 65 yd3 (49.7 m3) |
| Rated Payload | 207234.52 lb (94000 kg) |
| Raise Time | 16 sec |
Engine
| Number Of Cylinders | 12 |
| Engine Make | 2236 |
| Engine Model | C27 Acert |
| Gross Power | 787 hp (586.9 kw) |
| Net Power | 740 hp (551.9 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 1647.7 cu in (27 L) |
Operational
| Fuel Capacity | 264.2 gal (1000 L) |
| Hydraulic System Fluid Capacity | 118.9 gal (450 L) |
| Cooling System Fluid Capacity | 46.3 gal (175 L) |
| Engine Oil Capacity | 25.1 gal (95 L) |
| Transmission Fluid Capacity | 19.1 gal (72 L) |
| Tire Size | 21.00xR35 |
Transmission
| Number Of Forward Gears | 7 |
| Number Of Reverse Gears | 1 |
| Max Speed | 46.8 mph (75.4 km/h) |
Weights
| Total Loaded | 297624.1 lb (135000 kg) |
