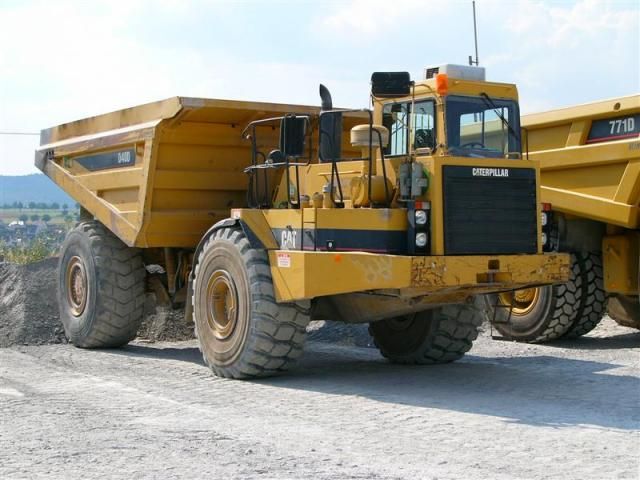

Caterpillar D40D
Browse All Caterpillar or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 32.03 ft in (9760 mm) |
| Overall Width | 11.36 ft in (3460 mm) |
| Overall Height | 11.68 ft in (3560 mm) |
| Wheelbase | 15.92 ft in (4850 mm) |
| Dump Height | 18.02 ft in (5490 mm) |
Dump
| Capacity - Struck | 22.11 yd3 (16.9 m3) |
| Capacity - Heaped | 29.3 yd3 (22.4 m3) |
| Rated Payload | 79985.92 lb (36281 kg) |
Engine
| Engine Make | 2236 |
| Engine Model | 3406 |
| Gross Power | 385 hp (287.1 kw) |
| Displacement | 891 cu in (14.6 L) |
Operational
| Fuel Capacity | 118.9 gal (450 L) |
| Tire Size | front 29.5x25 Radials, rear 33.25x29 Radials |
Transmission
| Number Of Forward Gears | 4 |
| Max Speed | 34.2 mph (55 km/h) |
Weights
| Front Axle - Empty | 38309.8 lb (17377 kg) |
| Rear Axle - Empty | 23479.3 lb (10650 kg) |
| Front Axle - Loaded | 55292 % |
| Rear Axle - Loaded | 86483 lb (39228 kg) |
| Total Empty | 61789 lb (28027 kg) |
| Total Loaded | 141774.9 lb (64308 kg) |
