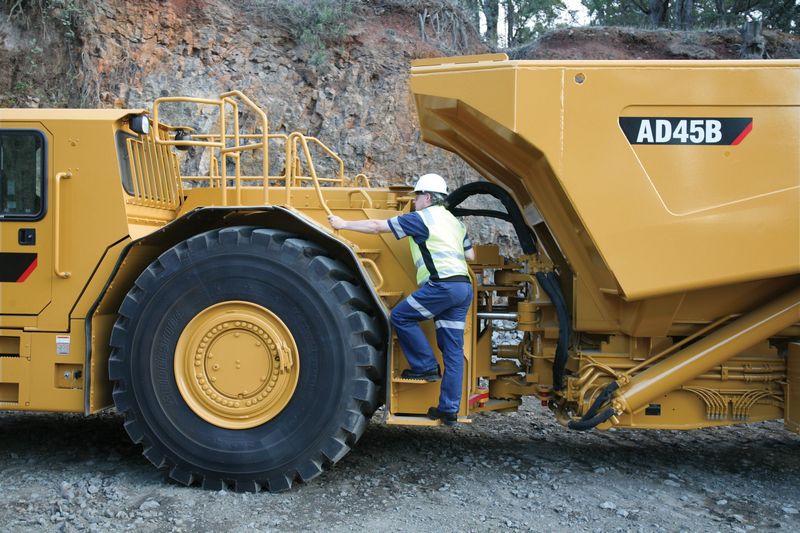

Caterpillar AD45B
Browse All Caterpillar or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 36.73 ft in (11194 mm) |
| Overall Width | 9.85 ft in (3000 mm) |
| Overall Height | 9.97 ft in (3036 mm) |
| Wheelbase | 18.28 ft in (5570 mm) |
| Ground Clearance | 1.45 ft in (441 mm) |
| Dump Height | 20.86 ft in (6357 mm) |
| Dump Ground Clearance | 2.19 ft in (665 mm) |
Dump
| Lower Time | 21 sec |
| Raise Time | 16 sec |
| Capacity - Heaped | 27.9 yd3 (21.3 m3) |
Engine
| Engine Make | 2236 |
| Engine Model | C18 ACERT |
| Gross Power | 587 hp (438 kw) |
| Net Power | 556 hp (414 kw) |
| Power Measured @ | 2000 rpm |
| Displacement | 1104.6 cu in (18.1 L) |
Operational
| Fuel Capacity | 201.8 gal (764 L) |
| Hydraulic System Fluid Capacity | 70.3 gal (266 L) |
| Cooling System Fluid Capacity | 22.5 gal (85 L) |
| Engine Oil Capacity | 16.9 gal (64 L) |
| Transmission Fluid Capacity | 15.9 gal (60 L) |
| Tire Size | 29.5 x R29 |
Transmission
| Number Of Forward Gears | 7 |
| Number Of Reverse Gears | 2 |
| Max Speed | 32.3 mph (52 km/h) |
Weights
| Front Axle - Empty | 60847 lb (27600 kg) |
| Rear Axle - Empty | 27337 lb (12400 kg) |
| Front Axle - Loaded | 85451 % |
| Rear Axle - Loaded | 101942 lb (46240 kg) |
| Total Empty | 88184 lb (40000 kg) |
| Total Loaded | 187393 lb (85000 kg) |
