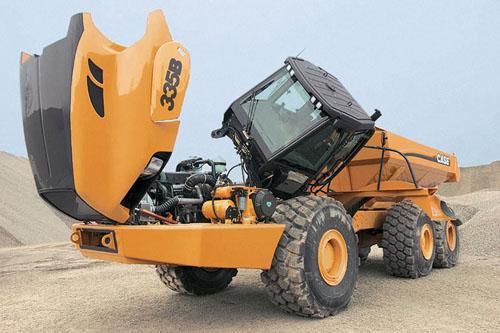

Case 335B
Browse All Case or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 35.37 ft in (10780 mm) |
| Overall Width | 10.47 ft in (3190 mm) |
| Overall Height | 12.08 ft in (3680 mm) |
| Wheelbase | 20.58 ft in (6270 mm) |
| Ground Clearance | 1.78 ft in (540 mm) |
| Dump Height | 22.54 ft in (6870 mm) |
| Dump Ground Clearance | 3.09 ft in (940 mm) |
Dump
| Dump Angle | 68 degrees |
| Lower Time | 13 sec |
| Rated Payload | 69445 lb (31500 kg) |
| Capacity - Struck | 19.61 yd3 (15 m3) |
| Raise Time | 11 sec |
| Capacity - Heaped | 26.2 yd3 (20 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2239 |
| Engine Model | Family IV 13 liter Tier III certified |
| Gross Power | 410 hp (306 kw) |
| Net Power | 380 hp (284 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1364.5 lb ft (1850 Nm) |
| Torque Measured @ | 1000 rpm |
| Aspiration | Turbocharged with Aftercooler |
| Displacement | 787 cu in (12.9 L) |
Operational
| Fuel Capacity | 119 gal (440 L) |
| Hydraulic System Fluid Capacity | 79.3 gal (300 L) |
| Engine Oil Capacity | 9.2 gal (35 L) |
| Transmission Fluid Capacity | 9.4 gal (35.5 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 90 amps |
| Tire Size | Tubeless 26.5 R25 |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
| Max Speed | 29.8 mph (48 km/h) |
Weights
| Front Axle - Empty | 31085 lb (14100 kg) |
| Rear Axle - Empty | 15873 lb (7200 kg) |
| Total Empty | 62832 lb (28500 kg) |
| Total Loaded | 132277 lb (60000 kg) |
