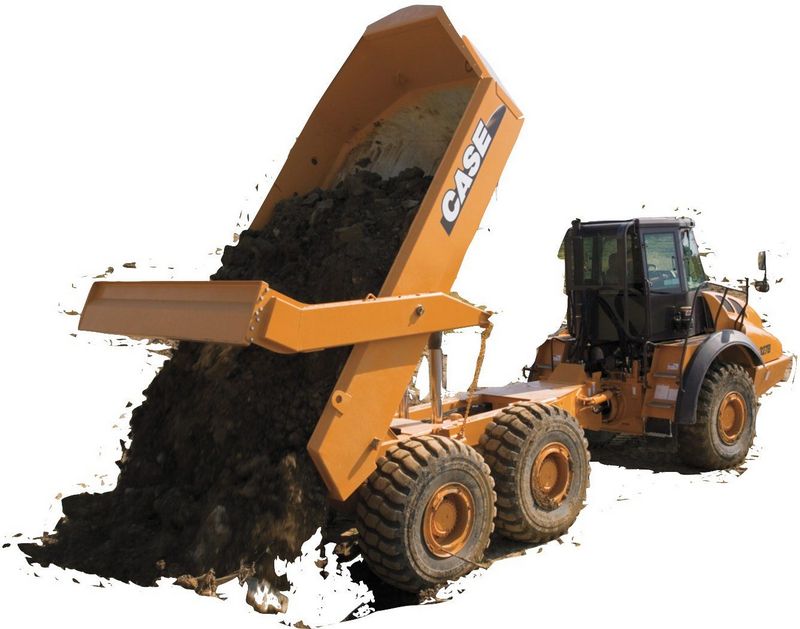

Case 327B
Browse All Case or Articulated Dump Truck Models
Contents:
Dimensions
| Overall Length | 32.92 ft in (10030 mm) |
| Overall Width | 9.75 ft in (2960 mm) |
| Overall Height | 11.92 ft in (3650 mm) |
| Wheelbase | 19.39 ft in (5910 mm) |
| Ground Clearance | 1.54 ft in (470 mm) |
| Dump Height | 20.45 ft in (6230 mm) |
| Dump Ground Clearance | 3.12 ft in (950 mm) |
Dump
| Dump Angle | 68 degrees |
| Lower Time | 13 sec |
| Rated Payload | 51147 lb (23200 kg) |
| Capacity - Struck | 13.9 yd3 (10.6 m3) |
| Raise Time | 13 sec |
| Capacity - Heaped | 18 yd3 (14.5 m3) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2239 |
| Engine Model | Family IV 10 liter Tier III certified |
| Gross Power | 315 hp (235 kw) |
| Net Power | 300 hp (224 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1069.5 lb ft (1450 Nm) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged with Aftercooler |
| Displacement | 629 cu in (10.3 L) |
Operational
| Fuel Capacity | 100 gal (380 L) |
| Hydraulic System Fluid Capacity | 58.1 gal (220 L) |
| Engine Oil Capacity | 8 gal (30.5 L) |
| Transmission Fluid Capacity | 10 gal (38 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 140 amps |
| Tire Size | Tubeless 23.5 R25 |
Transmission
| Transmission Type | Powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
| Max Speed | 28.8 mph (46.3 km/h) |
Weights
| Front Axle - Empty | 26455 lb (12000 kg) |
| Rear Axle - Empty | 23303 lb (10570 kg) |
| Total Empty | 49758 lb (22570 kg) |
| Total Loaded | 100905 lb (45769 kg) |
