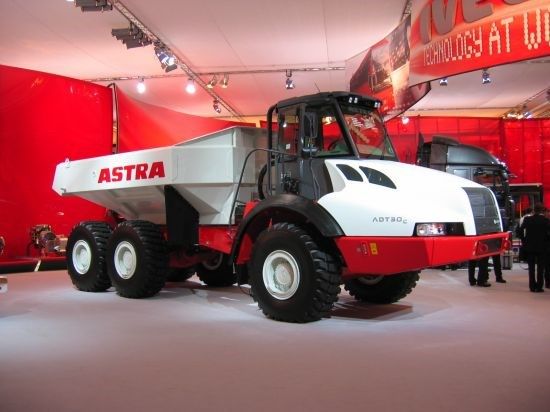

Astra ADT30C
Contents:
| Overall Length | 32.91 ft in (10030 mm) |
| Overall Width | 9.72 ft in (2960 mm) |
| Overall Height | 11.88 ft in (3620 mm) |
| Rated Payload | 62082.17 lb (28160 kg) |
| Lower Time | 13 sec |
| Capacity - Heaped | 23.02 yd3 (17.61 m3) |
| Raise Time | 13 sec |
| Number Of Cylinders | 6 |
| Engine Make | 2358 |
| Engine Model | Cursor 10 |
| Gross Power | 348.7 hp (260 kw) |
| Power Measured @ | 1900 rpm |
| Max Torque | 1217 lb ft (1650 Nm) |
| Torque Measured @ | 1140 rpm |
| Displacement | 628.6 cu in (10.3 L) |
| Transmission Type | Powershift |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 3 |
| Max Speed | 28.8 mph (46.3 km/h) |
| Total Empty | 49758.4 lb (22570 kg) |
