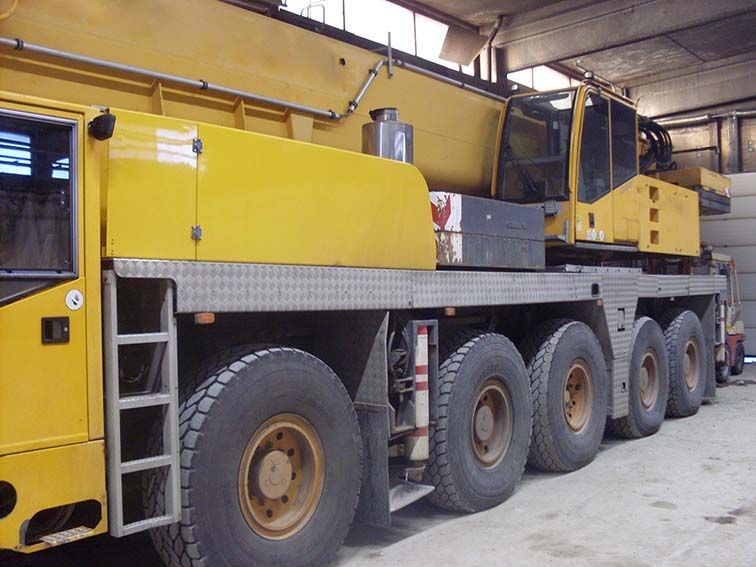

Terex AC395
Browse All Terex or All Terrain Crane Models
Contents:
Boom
| Max Elevating Angle | 80.5 degrees |
Dimensions
| Transport Length | 49.2 ft in (14996.16 mm) |
| Transport Width | 9.1 ft in (2773.68 mm) |
| Transport Height | 13.1 ft in (3992.88 mm) |
| Ground Clearance | 1.09 ft in (330 mm) |
| Width W/ Outriggers Extended | 24.7 ft in (7528.56 mm) |
| Carrier Length | 39.3 ft in (11978.64 mm) |
| Upper Structure Tail Swing Radius | 13.8 ft in (4206.24 mm) |
Upper Structure Engine
| Make | Terex |
| Model | OM 366 A |
| Gross Power | 150.2 hp (112 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 398.3 lb ft (540 Nm) |
| Torque Measured @ | 1400 rpm |
Carrier Engine
| Make | Terex |
| Model | OM 442 LA |
| Gross Power | 496.2 hp (370 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1489.9 lb ft (2020 Nm) |
| Torque Measured @ | 1600 rpm |
Operational
| Number Of Axels | 54 |
| Upper Structure Fuel Capacity | 53 gal (200.7 L) |
| Carrier Fuel Capacity | 132 gal (499.7 L) |
| Operating Voltage | 24 V |
| Tire Size | 14.00 R 25 |
Transmission
| Transmission Type | ZF Transmatik system |
| Max Speed - Forward | 50 mph (80.5 km/h) |
| Max Speed - Reverse | 4 mph (6.5 km/h) |
