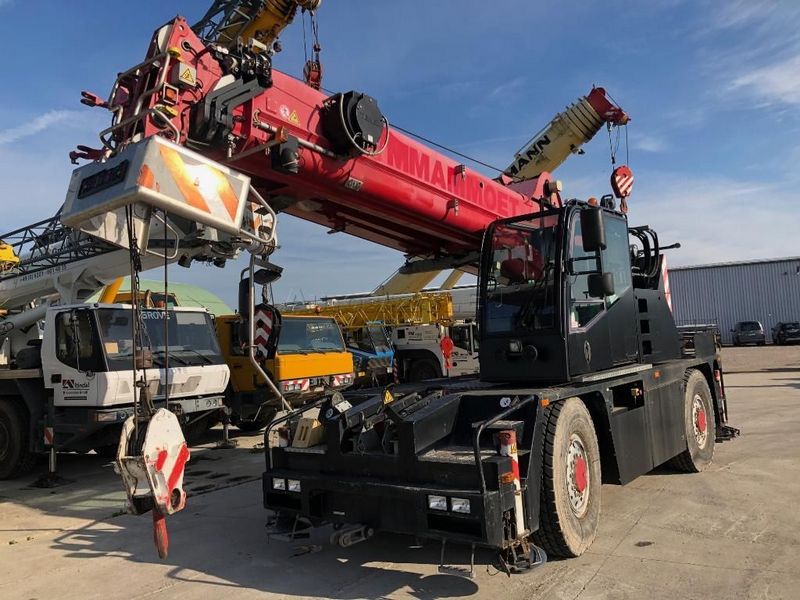

Terex AC30
Browse All Terex or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 32.81 ft in (10 m) |
| Max Height @ Max Raise Angle - No Jib | 90.88 ft in (27.7 m) |
| Min Working Radius | 8.86 ft in (2.7 m) |
| Max Working Radius | 72.18 ft in (22 m) |
| Max Elevating Angle | 78 degrees |
| Max Lift Capacity | 66138.68 lb (30000 kg) |
| Swing Speed | 1.7 rpm |
| Number Of Sections | 4 |
Dimensions
| Transport Length | 27.48 ft in (8375 mm) |
| Transport Width | 8.21 ft in (2500 mm) |
| Transport Height | 10.11 ft in (3080 mm) |
| Ground Clearance | 0.78 ft in (236 mm) |
| Width W/ Outriggers Extended | 19.36 ft in (5900 mm) |
| Carrier Length | 22.58 ft in (6880 mm) |
| Upper Structure Tail Swing Radius | 9.68 ft in (2950 mm) |
Carrier Engine
| Make | Terex |
| Model | QSB 5.9 |
| Gross Power | 230.7 hp (172 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 669.8 lb ft (908 Nm) |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 48501.7 lb (22000 kg) |
| Number Of Axels | 2 |
| Carrier Fuel Capacity | 68.7 gal (260 L) |
| Upper Structure Hydraulic System Fluid Capacity | 91.2 gal (345 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 70 amps |
| Tire Size | 445/65 R 22.5 |
Transmission
| Transmission Type | Allison automatic |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 49.8 mph (80 km/h) |
