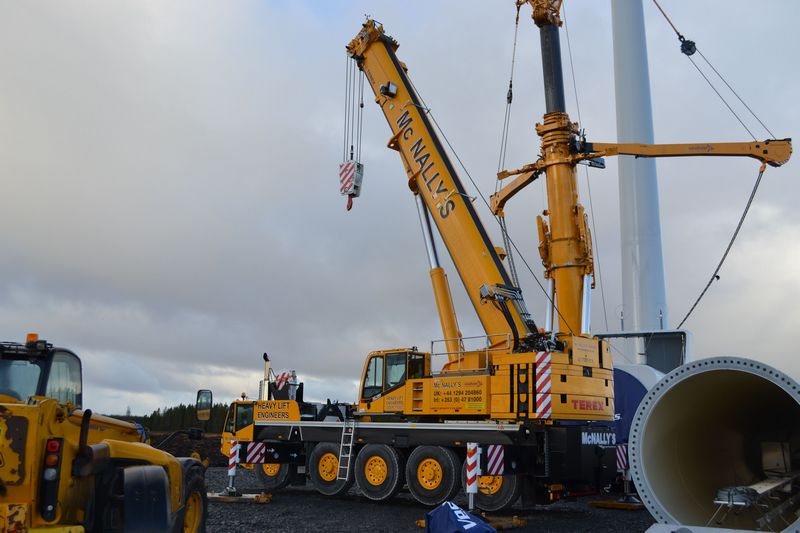

Terex AC140
Browse All Terex or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 49.22 ft in (15 m) |
| Max Height @ Max Raise Angle - No Jib | 203.42 ft in (62 m) |
| Min Working Radius | 9.85 ft in (3 m) |
| Max Working Radius | 177.17 ft in (54 m) |
| Max Elevating Angle | 82 degrees |
| Number Of Sections | 5 |
| Max Lift Capacity | 308647.15 lb (140000 kg) |
| Swing Speed | 1.7 rpm |
Dimensions
| Transport Length | 46.53 ft in (14180 mm) |
| Transport Width | 9.85 ft in (3000 mm) |
| Transport Height | 13.13 ft in (4000 mm) |
| Width W/ Outriggers Extended | 24.61 ft in (7500 mm) |
| Carrier Length | 40.44 ft in (12326 mm) |
Upper Structure Engine
| Make | Terex |
| Model | OM 904 LA |
| Gross Power | 175 hp (130.5 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 497.9 lb ft (675 Nm) |
| Torque Measured @ | 1600 rpm |
Carrier Engine
| Make | Terex |
| Model | OM 502 LA |
| Gross Power | 530 hp (395.3 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1770.2 lb ft (2400 Nm) |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 132277.4 lb (60000 kg) |
| Number Of Axels | 5 |
| Upper Structure Fuel Capacity | 60.8 gal (230 L) |
| Carrier Fuel Capacity | 132.1 gal (500 L) |
| Upper Structure Hydraulic System Fluid Capacity | 206.1 gal (780 L) |
| Operating Voltage | 24 V |
| Tire Size | 14.00R25 |
Transmission
| Transmission Type | ZF AS-Tronic electronically automated transmission |
| Number Of Forward Gears | 16 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 52.9 mph (85 km/h) |
