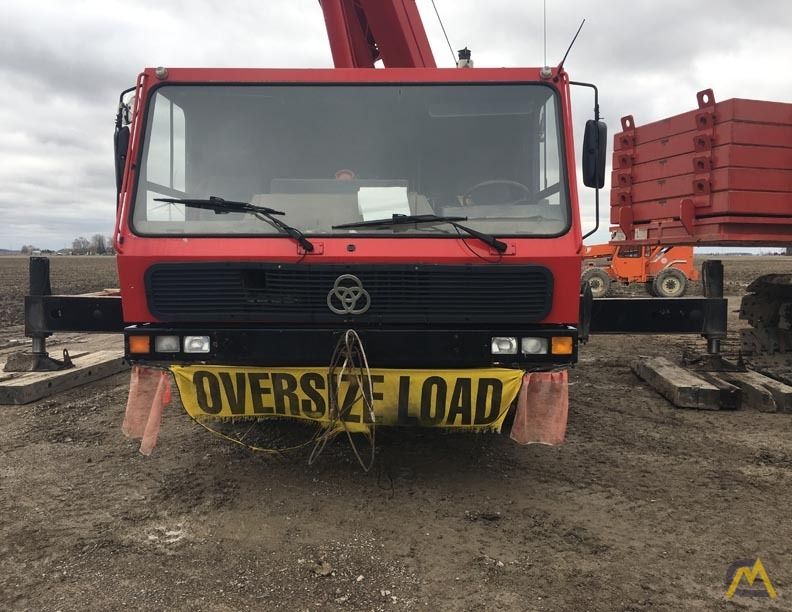

Krupp KMK5110
Browse All Krupp or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 47 ft in (14.33 m) |
| Max Height @ Max Raise Angle - No Jib | 138 ft in (42.07 m) |
| Min Working Radius | 10 ft in (3.05 m) |
| Max Working Radius | 120 ft in (36.58 m) |
| Max Elevating Angle | 84 degrees |
| Number Of Sections | 3 |
| Max Lift Capacity | 220000 lb (99790.32 kg) |
| Swing Speed | 1.9 rpm |
Dimensions
| Transport Length | 47.42 ft in (14453.62 mm) |
| Transport Width | 9 ft in (2743.2 mm) |
| Transport Height | 12.33 ft in (3758.19 mm) |
| Width W/ Outriggers Extended | 26.25 ft in (8001 mm) |
| Carrier Length | 42.58 ft in (12978.39 mm) |
| Upper Structure Tail Swing Radius | 12 ft in (3657.6 mm) |
Upper Structure Engine
| Make | Krupp |
| Model | OM 366 A |
| Gross Power | 169 hp (126 kw) |
| Power Measured @ | 2400 rpm |
| Max Torque | 413.1 lb ft (560 Nm) |
| Torque Measured @ | 1600 rpm |
Carrier Engine
| Make | Krupp |
| Model | OM 442 LA |
| Gross Power | 441.2 hp (329 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1301.8 lb ft (1765 Nm) |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 132500 lb (60101 kg) |
| Number Of Axels | 5 |
| Upper Structure Fuel Capacity | 50 gal (189.3 L) |
| Carrier Fuel Capacity | 100 gal (378.6 L) |
| Upper Structure Hydraulic System Fluid Capacity | 300 gal (1135.7 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Tire Size | 14.00R25 |
Transmission
| Transmission Type | Allison automatic CLBT 755 |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 43.1 mph (69.4 km/h) |
| Max Speed - Reverse | 9.1 mph (14.7 km/h) |
