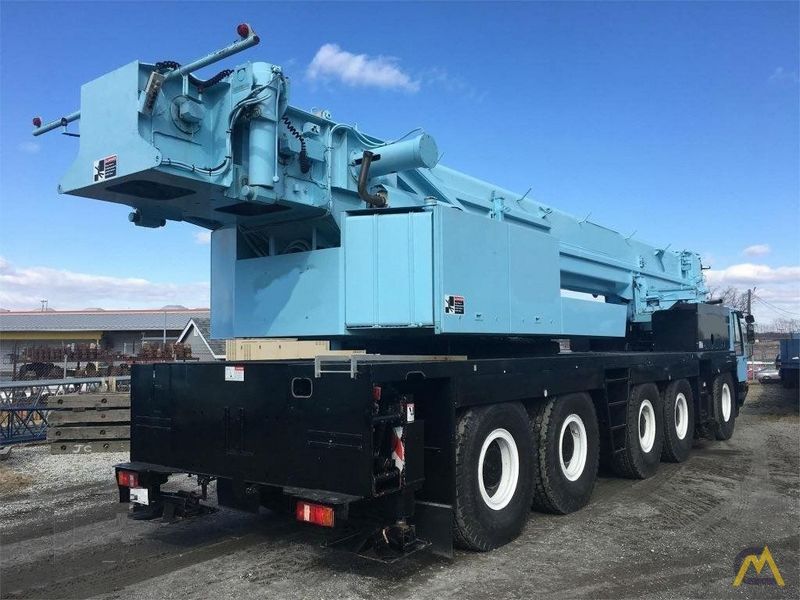

Krupp KMK5175
Browse All Krupp or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 49 ft in (14.94 m) |
| Max Height @ Max Raise Angle - No Jib | 172 ft in (52.43 m) |
| Min Working Radius | 10 ft in (3.05 m) |
| Max Working Radius | 145 ft in (44.2 m) |
| Max Elevating Angle | 85 degrees |
| Number Of Sections | 5 |
| Max Lift Capacity | 350000 lb (158757.33 kg) |
| Swing Speed | 1.5 rpm |
Dimensions
| Transport Length | 50.67 ft in (15444.22 mm) |
| Transport Width | 9.83 ft in (2996.19 mm) |
| Transport Height | 12.92 ft in (3938.02 mm) |
| Width W/ Outriggers Extended | 26.83 ft in (8177.79 mm) |
| Carrier Length | 44 ft in (13411.2 mm) |
| Upper Structure Tail Swing Radius | 16.25 ft in (4953 mm) |
Upper Structure Engine
| Make | Krupp |
| Model | OM 366 A |
| Gross Power | 139.5 hp (104 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 417.5 lb ft (566 Nm) |
| Torque Measured @ | 1600 rpm |
Carrier Engine
| Make | Krupp |
| Model | OM 442 LA |
| Gross Power | 496.2 hp (370 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1489.9 lb ft (2020 Nm) |
| Torque Measured @ | 2020 rpm |
Operational
| Operating Weight | 132500 lb (60101 kg) |
| Number Of Axels | 5 |
| Upper Structure Fuel Capacity | 50 gal (189.3 L) |
| Carrier Fuel Capacity | 100 gal (378.6 L) |
| Upper Structure Hydraulic System Fluid Capacity | 375 gal (1419.6 L) |
| Operating Voltage | 24 V |
| Tire Size | 14.00R25 |
Transmission
| Transmission Type | Allison automatic CLBT 755 |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 43.1 mph (69.4 km/h) |
| Max Speed - Reverse | 9 mph (14.5 km/h) |
