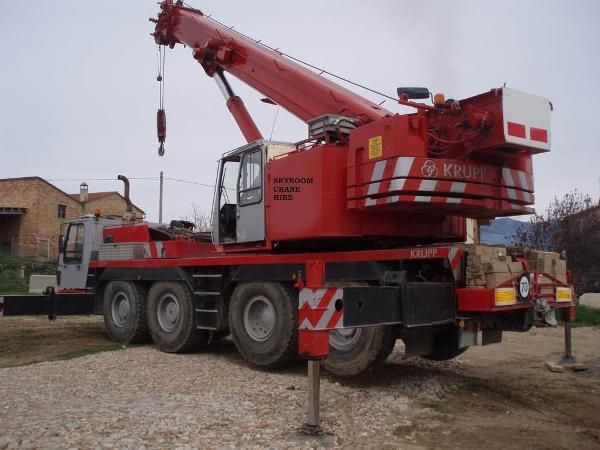

Krupp KMK4080
Browse All Krupp or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 48 ft in (14.64 m) |
| Max Height @ Max Raise Angle - No Jib | 134 ft in (40.85 m) |
| Min Working Radius | 10 ft in (3.05 m) |
| Max Working Radius | 110 ft in (33.53 m) |
| Max Elevating Angle | 84 degrees |
| Number Of Sections | 3 |
| Max Lift Capacity | 176369.8 lb (80000 kg) |
| Swing Speed | 2.21 rpm |
Dimensions
| Transport Length | 43.5 ft in (13258.8 mm) |
| Transport Width | 9 ft in (2743.2 mm) |
| Transport Height | 13.17 ft in (4014.22 mm) |
| Width W/ Outriggers Extended | 23.58 ft in (7187.19 mm) |
| Carrier Length | 34.82 ft in (10613.14 mm) |
| Upper Structure Tail Swing Radius | 11.5 ft in (3505.2 mm) |
Upper Structure Engine
| Make | Krupp |
Carrier Engine
| Make | Krupp |
| Model | OM 442 diesel |
| Gross Power | 362.1 hp (270 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1180.1 lb ft (1600 Nm) |
| Torque Measured @ | 1500 rpm |
Operational
| Operating Weight | 106000 lb (48080.8 kg) |
| Number Of Axels | 4 |
| Carrier Fuel Capacity | 100 gal (378.6 L) |
| Upper Structure Hydraulic System Fluid Capacity | 200 gal (757.1 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Tire Size | 14.00R25 |
Transmission
| Transmission Type | ZF 5-special-automatic 5 HP 600 |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 43.1 mph (69.4 km/h) |
| Max Speed - Reverse | 8.9 mph (14.4 km/h) |
