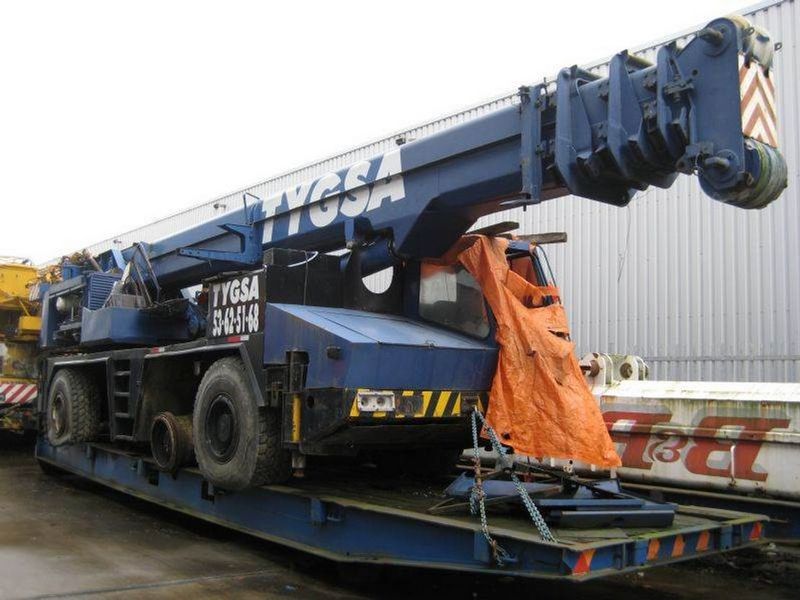

Krupp 70GMT-AT
Browse All Krupp or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 45 ft in (13.72 m) |
| Max Height @ Max Raise Angle - No Jib | 135 ft in (41.15 m) |
| Min Working Radius | 10 ft in (3.05 m) |
| Max Working Radius | 120 ft in (36.58 m) |
| Max Elevating Angle | 80 degrees |
| Number Of Sections | 4 |
| Max Lift Capacity | 160000 lb (72574.78 kg) |
| Swing Speed | 2.5 rpm |
Dimensions
| Transport Length | 45 ft in (13716 mm) |
| Transport Width | 8.83 ft in (2691.39 mm) |
| Transport Height | 12 ft in (3657.6 mm) |
| Width W/ Outriggers Extended | 22 ft in (6705.6 mm) |
| Carrier Length | 35.75 ft in (10896.6 mm) |
| Upper Structure Tail Swing Radius | 13.5 ft in (4114.8 mm) |
Upper Structure Engine
| Make | Krupp |
| Model | diesel OM 352A |
| Gross Power | 139 hp (103.7 kw) |
| Power Measured @ | 2300 rpm |
Carrier Engine
| Make | Krupp |
| Model | diesel OM 422 A |
| Gross Power | 330 hp (246.1 kw) |
| Power Measured @ | 2300 rpm |
Operational
| Number Of Axels | 4 |
| Upper Structure Fuel Capacity | 50 gal (189.3 L) |
| Carrier Fuel Capacity | 75 gal (284 L) |
| Upper Structure Hydraulic System Fluid Capacity | 250 gal (946.4 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Tire Size | 16-25 |
Transmission
| Transmission Type | automatic gearbox |
| Number Of Forward Gears | 2 |
| Max Speed - Forward | 47 mph (75.7 km/h) |
