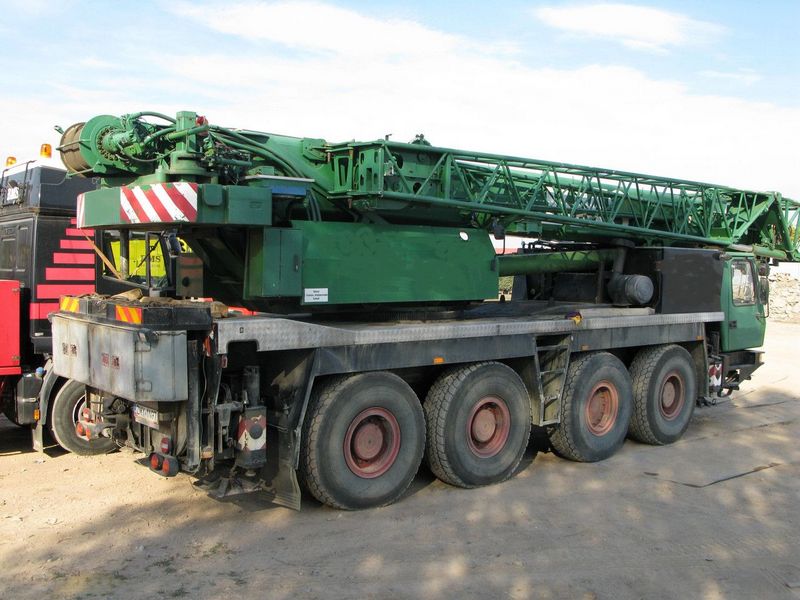

Krupp 140GMT-AT
Browse All Krupp or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 60 ft in (18.29 m) |
| Max Height @ Max Raise Angle - No Jib | 162 ft in (49.38 m) |
| Min Working Radius | 10 ft in (3.05 m) |
| Max Working Radius | 135 ft in (41.15 m) |
| Max Elevating Angle | 82.2 degrees |
| Number Of Sections | 4 |
| Max Lift Capacity | 330000 lb (149685.48 kg) |
| Swing Speed | 1.6 rpm |
Dimensions
| Transport Length | 57.08 ft in (17397.99 mm) |
| Transport Width | 9.83 ft in (2996.19 mm) |
| Transport Height | 12.33 ft in (3758.19 mm) |
| Width W/ Outriggers Extended | 29.5 ft in (8991.6 mm) |
| Carrier Length | 53.08 ft in (16178.79 mm) |
| Upper Structure Tail Swing Radius | 16.75 ft in (5105.4 mm) |
Upper Structure Engine
| Make | Krupp |
| Model | OM 366 LA |
| Gross Power | 195 hp (145.5 kw) |
| Power Measured @ | 2300 rpm |
Carrier Engine
| Make | Krupp |
| Model | OM 424 |
| Gross Power | 420 hp (313.2 kw) |
| Power Measured @ | 2300 rpm |
Operational
| Operating Weight | 363762.8 lb (165000 kg) |
| Number Of Axels | 6 |
| Upper Structure Fuel Capacity | 105 gal (397.5 L) |
| Carrier Fuel Capacity | 210 gal (795 L) |
| Upper Structure Hydraulic System Fluid Capacity | 400 gal (1514.2 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Tire Size | 16.0-25 |
Transmission
| Transmission Type | Allison 5-speed automatic gearbox |
| Number Of Forward Gears | 5 |
| Max Speed - Forward | 45 mph (72.5 km/h) |
