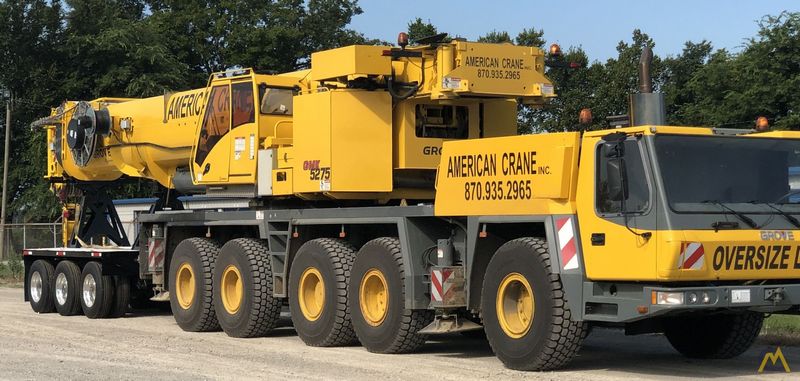

Grove GMK5275
Browse All Grove or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 50 ft in (15.24 m) |
| Max Height @ Max Raise Angle - No Jib | 232.94 ft in (71 m) |
| Min Working Radius | 8 ft in (2.44 m) |
| Max Working Radius | 200 ft in (60.96 m) |
| Max Elevating Angle | 83 degrees |
| Max Lift Capacity | 549999.95 lb (249475.8 kg) |
| Swing Speed | 1.3 rpm |
| Number Of Sections | 7 |
Dimensions
| Transport Length | 49.48 ft in (15080 mm) |
| Transport Width | 8.24 ft in (2510 mm) |
| Transport Height | 13.13 ft in (4000 mm) |
| Ground Clearance | 1.48 ft in (450 mm) |
| Width W/ Outriggers Extended | 26.58 ft in (8100 mm) |
| Carrier Length | 43.94 ft in (13390 mm) |
| Upper Structure Tail Swing Radius | 15.59 ft in (4750 mm) |
Upper Structure Engine
| Make | Grove |
| Model | OM924LA |
| Gross Power | 201.2 hp (150 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 590.1 lb ft (800 Nm) |
| Torque Measured @ | 1200 rpm |
Carrier Engine
| Make | Grove |
| Model | OM502LA |
| Gross Power | 543.2 hp (405 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 1917.7 lb ft (2600 Nm) |
| Torque Measured @ | 1300 rpm |
Operational
| Operating Weight | 132277.4 lb (60000 kg) |
| Number Of Axels | 5 |
| Upper Structure Fuel Capacity | 60.8 gal (230 L) |
| Carrier Fuel Capacity | 104.9 gal (397 L) |
| Upper Structure Hydraulic System Fluid Capacity | 241.8 gal (915 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Tire Size | 445/95 R25 |
Transmission
| Transmission Type | Allison |
| Number Of Forward Gears | 6 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 52.9 mph (85 km/h) |
