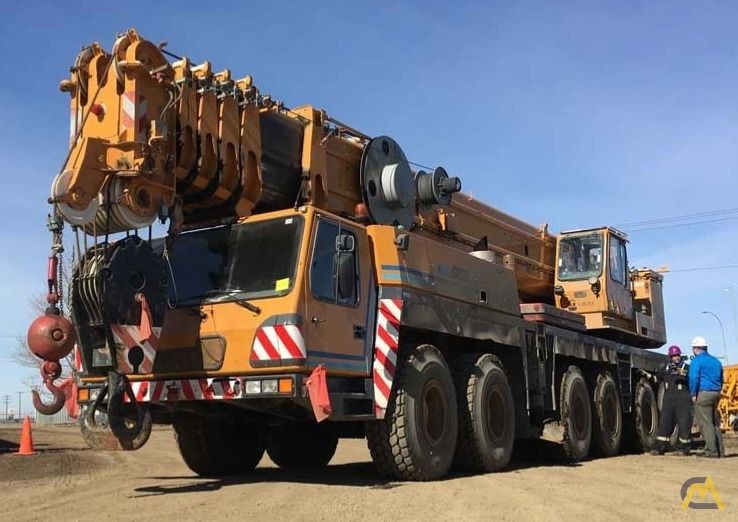

Grove GMK6220
Browse All Grove or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 44.3 ft in (13.5 m) |
| Max Height @ Max Raise Angle - No Jib | 196.86 ft in (60 m) |
| Min Working Radius | 44.3 ft in (13.5 m) |
| Max Working Radius | 196.86 ft in (60 m) |
| Max Elevating Angle | 82 degrees |
| Max Lift Capacity | 138800 lb (62958.63 kg) |
| Swing Speed | 1.7 rpm |
| Number Of Sections | 6 |
Dimensions
| Transport Length | 53.11 ft in (16187.93 mm) |
| Transport Width | 10.08 ft in (3070 mm) |
| Transport Height | 13.1 ft in (3992.88 mm) |
| Width W/ Outriggers Extended | 19.69 ft in (6000 mm) |
| Carrier Length | 49.7 ft in (15148.56 mm) |
| Gradeability | 46 % |
Upper Structure Engine
| Make | Grove |
| Model | 6BTA5.9-C |
| Gross Power | 165 hp (123 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 538.5 lb ft (730 Nm) |
| Torque Measured @ | 1500 rpm |
Carrier Engine
| Make | Grove |
| Model | 6BTA5.9-C |
| Gross Power | 165 hp (123.1 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 538.5 lb ft (730 Nm) |
| Torque Measured @ | 1500 rpm |
| Number Of Cylinders | 6 |
Operational
| Operating Weight | 138891.3 lb (63000 kg) |
| Number Of Axels | 6 |
| Carrier Fuel Capacity | 132.1 gal (500 L) |
| Upper Structure Hydraulic System Fluid Capacity | 258.9 gal (980 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 28 amps |
| Tire Size | 20.5R25 |
Transmission
| Transmission Type | Allison automatic CLT 755 |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 47.9 mph (77 km/h) |
