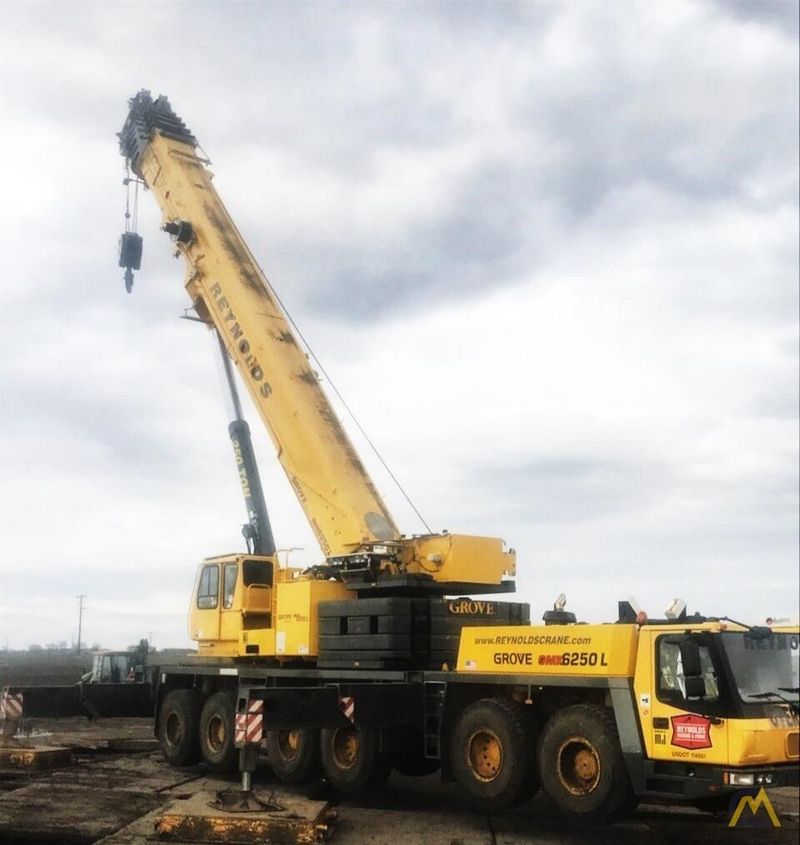

Grove GMK6250
Browse All Grove or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 44 ft in (13.42 m) |
| Max Height @ Max Raise Angle - No Jib | 197 ft in (60.05 m) |
| Min Working Radius | 8 ft in (2.44 m) |
| Max Working Radius | 180 ft in (54.87 m) |
| Max Elevating Angle | 82 degrees |
| Number Of Sections | 6 |
| Max Lift Capacity | 350000 lb (158757.34 kg) |
| Swing Speed | 1.7 rpm |
Dimensions
| Transport Length | 53.88 ft in (16422 mm) |
| Transport Width | 10.08 ft in (3070 mm) |
| Transport Height | 13.13 ft in (4000 mm) |
| Width W/ Outriggers Extended | 27.89 ft in (8500 mm) |
| Carrier Length | 49.56 ft in (15105 mm) |
| Upper Structure Tail Swing Radius | 16.39 ft in (4995 mm) |
Upper Structure Engine
| Number Of Cylinders | 6 |
| Cooling System | Watercooled |
| Make | Grove |
| Model | 6BTA5.9-C |
| Gross Power | 165 hp (123 kw) |
| Power Measured @ | 2000 rpm |
| Max Torque | 538.5 lb ft (730 Nm) |
| Torque Measured @ | 1500 rpm |
Carrier Engine
| Make | Grove |
| Model | N14-525 E+ |
| Gross Power | 525.7 hp (392 kw) |
| Power Measured @ | 2100 rpm |
| Max Torque | 1850.6 lb ft (2509 Nm) |
| Torque Measured @ | 1200 rpm |
| Number Of Cylinders | 6 |
Operational
| Operating Weight | 143384 lb (65037.9 kg) |
| Number Of Axels | 6 |
| Upper Structure Fuel Capacity | 52.9 gal (200 L) |
| Carrier Fuel Capacity | 132.1 gal (500 L) |
| Upper Structure Hydraulic System Fluid Capacity | 258.9 gal (980 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Tire Size | 20.5R25 |
Transmission
| Transmission Type | Allison automatic CLT 755 |
| Number Of Forward Gears | 5 |
| Number Of Reverse Gears | 1 |
| Max Speed - Forward | 47.9 mph (77 km/h) |
