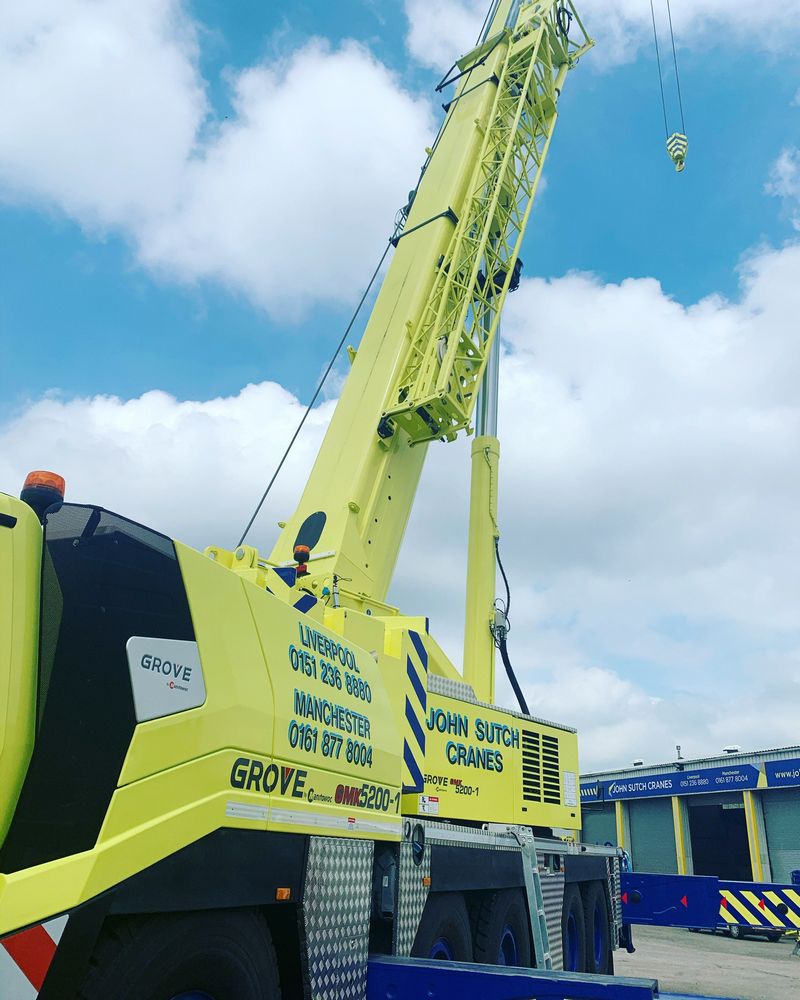

Grove GMK5200-1
Browse All Grove or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 52.5 ft in (16 m) |
| Max Height @ Max Raise Angle - No Jib | 216.54 ft in (66 m) |
| Max Elevating Angle | 82 degrees |
| Number Of Sections | 6 |
| Max Lift Capacity | 479999.95 lb (217724.33 kg) |
Dimensions
| Transport Length | 54.73 ft in (16680 mm) |
| Transport Width | 8.9 ft in (2710 mm) |
| Transport Height | 12.96 ft in (3950 mm) |
| Ground Clearance | 1.6 ft in (486 mm) |
| Width W/ Outriggers Extended | 25.6 ft in (7800 mm) |
| Carrier Length | 44.8 ft in (13655 mm) |
| Upper Structure Tail Swing Radius | 17.39 ft in (5299 mm) |
Carrier Engine
| Make | Grove |
| Model | OM471LA |
| Gross Power | 523 hp (390 kw) |
| Power Measured @ | 1700 rpm |
| Max Torque | 1814.5 lb ft (2460 Nm) |
| Torque Measured @ | 1300 rpm |
| Number Of Cylinders | 6 |
| Aspiration | Turbocharged |
| Emission Level | Euromot 4 / EPA / CARB Tier 4 final |
Operational
| Operating Weight | 146938.1 lb (66650 kg) |
| Number Of Axels | 5 |
| Carrier Fuel Capacity | 171.8 gal (650 L) |
| Upper Structure Hydraulic System Fluid Capacity | 235.2 gal (890 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 100 amps |
| Tire Size | 385/95 R25 |
Transmission
| Transmission Type | Mercedes G 280 with VIAB |
| Number Of Forward Gears | 16 |
| Number Of Reverse Gears | 2 |
