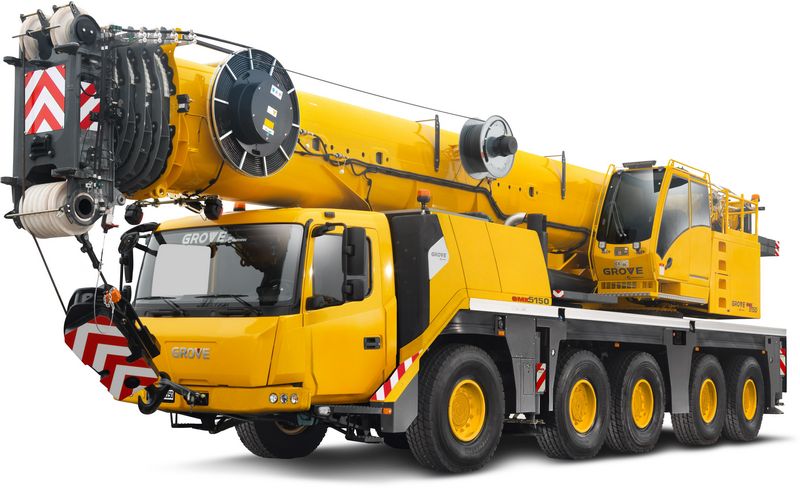

Grove GMK5150
Browse All Grove or All Terrain Crane Models
Contents:
Boom
| Min Height @ Max Raise Angle | 49.22 ft in (15 m) |
| Max Height @ Max Raise Angle - No Jib | 177.17 ft in (54 m) |
| Max Elevating Angle | 83 degrees |
| Number Of Sections | 4 |
| Max Lift Capacity | 308647.15 lb (140000 kg) |
Dimensions
| Transport Length | 47.82 ft in (14575 mm) |
| Transport Width | 9.03 ft in (2750 mm) |
| Transport Height | 12.92 ft in (3935 mm) |
| Ground Clearance | 1.42 ft in (431 mm) |
| Width W/ Outriggers Extended | 24.94 ft in (7600 mm) |
| Carrier Length | 41.28 ft in (12581 mm) |
| Upper Structure Tail Swing Radius | 14.17 ft in (4319 mm) |
Carrier Engine
| Make | Grove |
| Model | OM471LA |
| Gross Power | 523 hp (390 kw) |
| Power Measured @ | 1700 rpm |
| Max Torque | 1814.5 lb ft (2460 Nm) |
| Torque Measured @ | 1300 rpm |
| Number Of Cylinders | 6 |
| Aspiration | Turbocharged |
| Emission Level | Euromot 4 / EPA / CARB Tier 4 final |
Operational
| Operating Weight | 113192 lb (51343 kg) |
| Number Of Axels | 5 |
| Carrier Fuel Capacity | 171.8 gal (650 L) |
| Upper Structure Hydraulic System Fluid Capacity | 198.2 gal (750 L) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 150 amps |
| Tire Size | 385/95 R25 |
Transmission
| Transmission Type | Mercedes G 280 |
| Number Of Forward Gears | 16 |
| Number Of Reverse Gears | 2 |
