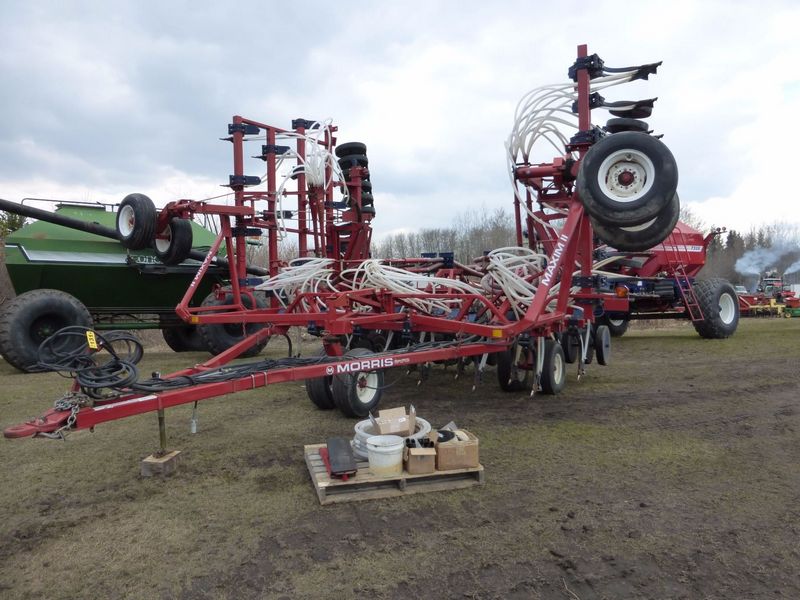

Morris Maxim II 34'
Contents:
Frame Widths
| Transport Length | 25.66 ft in (7.82 m) |
| Transport Width | 19.79 ft in (6.03 m) |
| Transport Height | 14.08 ft in (4.29 m) |
| Inner Wing | 10.01 ft in (3.05 m) |
| Main Frame | 14.51 ft in (4.42 m) |
Base Size
| Base Width | 34 ft in (10.4 m) |
| Number Of Ranks | 4 |
| Rank To Rank Spacing | 24.1 in (61 cm) |
| Frame Depth | 76 in (193.1 cm) |
Working Width
| 7.2 In Spacing | 34.5 ft in (10.5 m) |
| 10 In Spacing | 35.1 ft in (10.7 m) |
| 12 In Spacing | 35.1 ft in (10.7 m) |
Number Of Shanks
| 7.2 In Spacing | 55 |
| 10 In Spacing | 42 |
| 12 In Spacing | 35 |
Weights
| 7.2 In Spacing | 17074.9 lb (7745 kg) |
| 10 In Spacing | 15057.6 lb (6830 kg) |
| 12 In Spacing | 14180.2 lb (6432 kg) |
Tires
| Main Frame Casters | (2) 9.5Lx15 FI Load range D |
| Inner Wing Casters | (2) 11Lx15 |
| Rear Transport Wheels | (4) 11Lx15 FI load range D 6 bolt hub |
