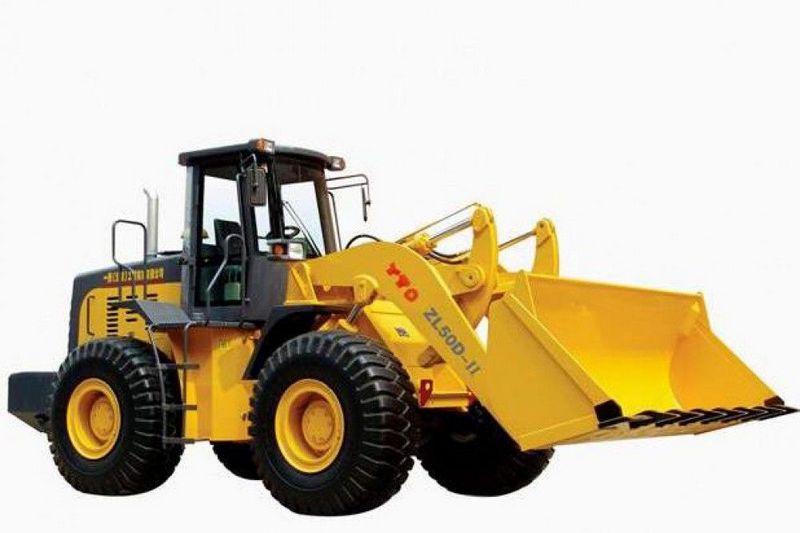

YTO ZL50C-II
Browse All YTO or Wheel Loader Models
Contents:
Bucket
| Bucket Capacity - Heaped | 3.93 yd3 (3 m3) |
| Bucket Width | 9.81 ft in (2990 mm) |
Dimensions
| Length With Bucket On Ground | 24.61 ft in (7500 mm) |
| Width Over Tires | 9.5 ft in (2895 mm) |
| Height To Top Of Cab | 11.16 ft in (3400 mm) |
Engine
| Engine Model | ShangHai 6135k-9b2 |
| Gross Power | 207.9 hp (155 kw) |
Operational
| Operating Weight | 37478.6 lb (17000 kg) |
| Static Tipping Weight | 11023.2 lb (5000 kg) |
| Turning Radius | 19.4 ft in (5900 mm) |
Transmission
| Max Speed - Forward | 22.4 mph (36 km/h) |
| Max Speed - Reverse | 10 mph (16 km/h) |
Hydraulic System
| Raise Time | 6.5 sec |
| Lower Time | 11.8 sec |
