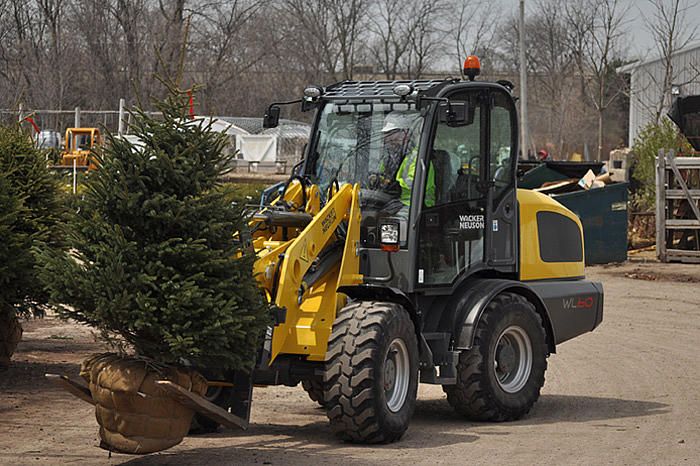

Wacker Neuson WL60
Browse All Wacker Neuson or Wheel Loader Models
Contents:
Bucket
| Dumping Angle, Top | 33 degrees |
| Bucket Capacity - Heaped | 1.5 yd3 (1.15 m3) |
Dimensions
| Ground Clearance | 1.24 ft in (375 mm) |
| Length With Bucket On Ground | 19.36 ft in (5898 mm) |
| Width Over Tires | 6.01 ft in (1829 mm) |
| Height To Top Of Cab | 8.84 ft in (2693 mm) |
| Wheelbase | 7.06 ft in (2150 mm) |
| Overall Length | 15.69 ft in (4780 mm) |
| Track Width | 55.99 in (1422 mm) |
| Turning Radius | 5.47 ft in (1666 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | Perkins |
| Engine Model | 854F-E34TA |
| Gross Power | 102 hp (76.1 kw) |
| Power Measured @ | 2500 rpm |
| Alternator | 120 amps |
Capacities
| Hydraulic Oil Tank | 25.1 gal (95 L) |
| Fuel Tank | 27.8 gal (105 L) |
Operational
| Max Speed | 12 mph (19.4 km/h) |
| Operating Voltage | 12 V |
| Tire Size | 405/70-18EM ET0 |
Weights
| Breakout Force Maximum | 7898 lb ft (10708.3 Nm) |
| Operating Weight | 13007 lb (5899.9 kg) |
Hydraulic System
| Pump Flow Capacity | 26 gal/min (98.5 L/min) |
| Relief Valve Pressure | 6454.3 psi (44500.7 kPa) |
