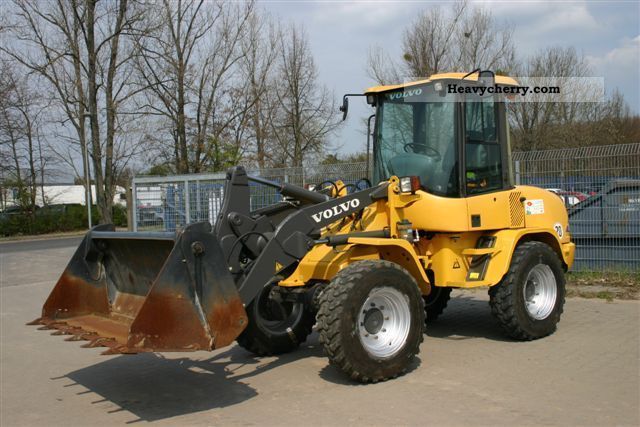

Volvo L30B Pro
Browse All Volvo or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.35 ft in (2545 mm) |
| Bucket Width | 6.25 ft in (1900 mm) |
| Bucket Capacity - Heaped | 1.2 yd3 (0.92 m3) |
Dimensions
| Ground Clearance | 1.83 ft in (570 mm) |
| Length With Bucket On Ground | 16.93 ft in (5160 mm) |
| Width Over Tires | 5.96 ft in (1815 mm) |
| Height To Top Of Cab | 8.92 ft in (2710 mm) |
| Wheelbase | 7.08 ft in (2150 mm) |
| Hinge Pin - Max Height | 10.58 ft in (3225 mm) |
| Reach At Max Lift And Dump | 2.35 ft in (715 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2244 |
| Engine Model | D3DCDE2 |
| Net Power | 68 hp (50 kw) |
| Gross Power | 71 hp (52 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 178 lb ft (241 Nm) |
| Displacement | 189.8 cu in (3.2 L) |
| Torque Measured @ | 1600 rpm |
| Aspiration | Turbocharged |
Operational
| Operating Weight | 12040 lb (5460 kg) |
| Fuel Capacity | 22.7 gal (860 L) |
| Hydraulic System Fluid Capacity | 17.2 gal (650 L) |
| Engine Oil Fluid Capacity | 2.8 gal (105 L) |
| Front Axle/Diff Fluid Capacity | 3.2 gal (122 L) |
| Rear Axle/Diff Fluid Capacity | 3.6 gal (135 L) |
| Static Tipping Weight | 9700 lb (4400 kg) |
| Turning Radius | 6.7 ft in (2030 mm) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 20 degrees |
| Tire Size | 400/70 R18 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 11.5 mph (18.6 km/h) |
| Max Speed - Reverse | 11.5 mph (18.6 km/h) |
Hydraulic System
| Relief Valve Setting | 3625 psi (24993.5 kPa) |
| Pump Flow Capacity | 14.5 gal/min (54.9 L/min) |
| Raise Time | 6.5 sec |
| Dump Time | 1.5 sec |
| Lower Time | 3.5 sec |
| Pump Type | Gear-type pump |
