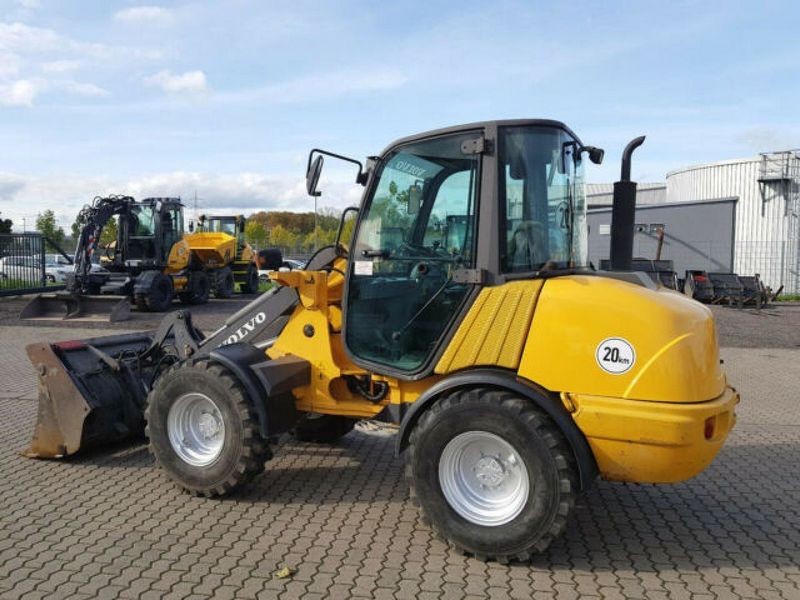

Volvo L25B
Browse All Volvo or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.17 ft in (2490 mm) |
| Bucket Width | 5.92 ft in (1800 mm) |
| Bucket Capacity - Heaped | 1 yd3 (0.77 m3) |
Dimensions
| Ground Clearance | 1.07 ft in (325 mm) |
| Length With Bucket On Ground | 16.64 ft in (5070 mm) |
| Width Over Tires | 5.66 ft in (1724 mm) |
| Height To Top Of Cab | 8.17 ft in (2475 mm) |
| Wheelbase | 6.75 ft in (2050 mm) |
| Hinge Pin - Max Height | 10.34 ft in (3150 mm) |
| Reach At Max Lift And Dump | 2.19 ft in (665 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Make | 2244 |
| Engine Model | D3DCBE2 |
| Net Power | 60 hp (44 kw) |
| Gross Power | 62 hp (45 kw) |
| Power Measured @ | 2300 rpm |
| Max Torque | 140 lb ft (190 Nm) |
| Displacement | 189.8 cu in (3.2 L) |
| Torque Measured @ | 1700 rpm |
| Aspiration | Natural |
Operational
| Operating Weight | 10650 lb (4830 kg) |
| Fuel Capacity | 15.9 gal (60 L) |
| Hydraulic System Fluid Capacity | 15.9 gal (60 L) |
| Engine Oil Fluid Capacity | 2.8 gal (10.5 L) |
| Front Axle/Diff Fluid Capacity | 1.1 gal (4.1 L) |
| Rear Axle/Diff Fluid Capacity | 1.6 gal (5.8 L) |
| Static Tipping Weight | 8267.4 lb (3750 kg) |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 20 degrees |
| Tire Size | 400/70 R18 |
Transmission
| Transmission Type | Hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 12.5 mph (20 km/h) |
| Max Speed - Reverse | 12.5 mph (20 km/h) |
Hydraulic System
| Relief Valve Setting | 3335 psi (22994 kPa) |
| Pump Flow Capacity | 14.5 gal/min (55 L/min) |
| Raise Time | 6 sec |
| Dump Time | 2 sec |
| Lower Time | 4 sec |
| Pump Type | Gear-type pump |
