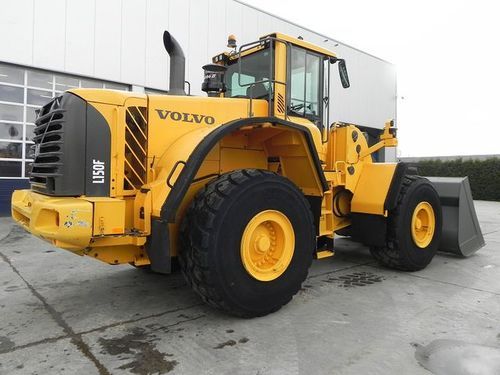

Volvo L150F
Browse All Volvo or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.78 ft in (2980 mm) |
| Bucket Width | 10.5 ft in (3200 mm) |
| Bucket Capacity - Heaped | 5.24 yd3 (4 m3) |
Dimensions
| Ground Clearance | 1.58 ft in (480 mm) |
| Length With Bucket On Ground | 28.48 ft in (8680 mm) |
| Width Over Tires | 9.68 ft in (2950 mm) |
| Height To Top Of Cab | 11.75 ft in (3580 mm) |
| Wheelbase | 11.65 ft in (3550 mm) |
| Hinge Pin - Max Height | 14.24 ft in (4340 mm) |
| Reach At Max Lift And Dump | 4.24 ft in (1290 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D120LDE3 |
| Net Power | 280.3 hp (209 kw) |
| Gross Power | 281.7 hp (210 kw) |
| Power Measured @ | 1550 rpm |
| Max Torque | 1056.2 lb ft (1432 Nm) |
| Displacement | 732.3 cu in (12 L) |
| Torque Measured @ | 1400 rpm |
| Aspiration | Turbocharged and Intercooled |
Operational
| Operating Weight | 52062.2 lb (23615 kg) |
| Fuel Capacity | 88.5 gal (335 L) |
| Hydraulic System Fluid Capacity | 41.3 gal (156 L) |
| Engine Oil Fluid Capacity | 12.7 gal (48 L) |
| Cooling System Fluid Capacity | 11.1 gal (42 L) |
| Transmission Fluid Capacity | 11.9 gal (45 L) |
| Front Axle/Diff Fluid Capacity | 11.9 gal (45 L) |
| Rear Axle/Diff Fluid Capacity | 14.6 gal (55 L) |
| Static Tipping Weight | 36751.1 lb (16670 kg) |
| Turning Radius | 24.3 ft in (7380 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 80 amps |
| Rear Axle Oscillation | 15 degrees |
| Tire Size | 26.5R25 L3 |
Transmission
| Transmission Type | Automatic Powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 22.5 mph (36.1 km/h) |
| Max Speed - Reverse | 22.5 mph (36.1 km/h) |
Hydraulic System
| Relief Valve Setting | 3771 psi (26000.2 kPa) |
| Pump Flow Capacity | 45.2 gal/min (171 L/min) |
| Raise Time | 5.9 sec |
| Dump Time | 2 sec |
| Lower Time | 3.7 sec |
