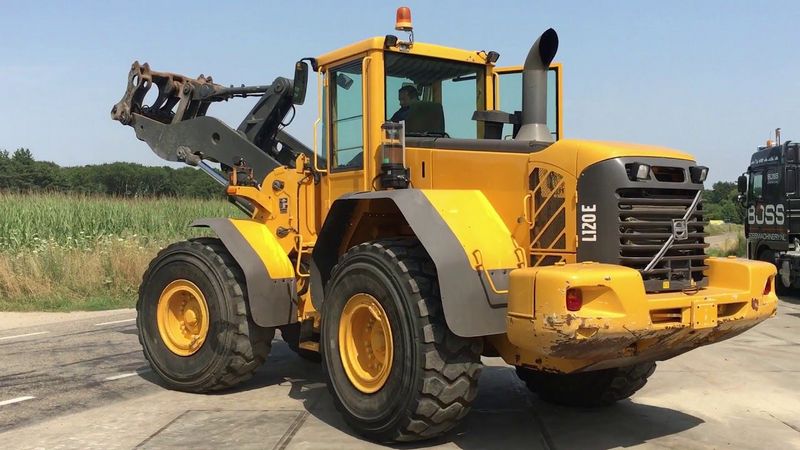

Volvo L120E
Browse All Volvo or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.03 ft in (2750 mm) |
| Bucket Capacity - Heaped | 4.32 yd3 (3.3 m3) |
| Bucket Width | 9.45 ft in (2880 mm) |
| Breakout Force | 35946.95 lb (159.9 kN) |
Dimensions
| Ground Clearance | 1.32 ft in (400 mm) |
| Length With Bucket On Ground | 27.07 ft in (8250 mm) |
| Width Over Tires | 8.8 ft in (2680 mm) |
| Height To Top Of Cab | 11.03 ft in (3360 mm) |
| Wheelbase | 10.5 ft in (3200 mm) |
| Hinge Pin - Max Height | 13.49 ft in (4110 mm) |
| Reach At Max Lift And Dump | 4.43 ft in (1350 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D7D LA E2 |
| Net Power | 223 hp (166.3 kw) |
| Gross Power | 224 hp (167.1 kw) |
| Power Measured @ | 1800 rpm |
| Max Torque | 752.4 lb ft (1020 Nm) |
| Displacement | 433.3 cu in (7.1 L) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 41799.7 lb (18960 kg) |
| Fuel Capacity | 56.8 gal (215 L) |
| Hydraulic System Fluid Capacity | 37.8 gal (143 L) |
| Engine Oil Fluid Capacity | 5.6 gal (21 L) |
| Cooling System Fluid Capacity | 18.5 gal (70 L) |
| Transmission Fluid Capacity | 10.1 gal (38 L) |
| Front Axle/Diff Fluid Capacity | 9.6 gal (36 L) |
| Rear Axle/Diff Fluid Capacity | 10.9 gal (41 L) |
| Static Tipping Weight | 31261.6 lb (14180 kg) |
| Turning Radius | 21.1 ft in (6405 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 55 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 23.5R25 L3 |
Transmission
| Transmission Type | Volvo HTE205 |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 21.9 mph (35.1 km/h) |
| Max Speed - Reverse | 21.9 mph (35.1 km/h) |
Hydraulic System
| Relief Valve Setting | 3626 psi (25000 kPa) |
| Pump Flow Capacity | 38.4 gal/min (145 L/min) |
| Raise Time | 5.4 sec |
| Dump Time | 2.1 sec |
| Lower Time | 2.5 sec |
