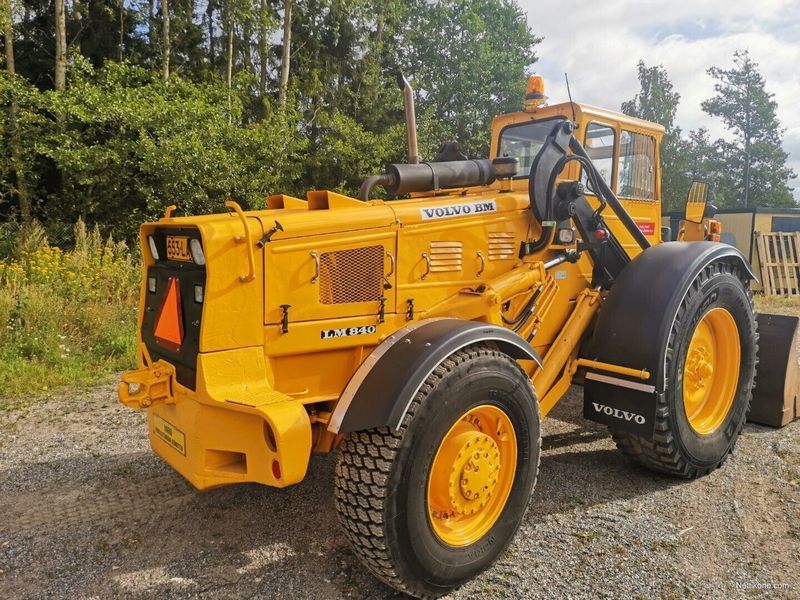

Volvo BM LM840
Browse All Volvo BM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 10.18 ft in (3100 mm) |
| Bucket Capacity - Struck | 1.71 yd3 (1.3 m3) |
| Bucket Capacity - Heaped | 5.24 yd3 (4 m3) |
Dimensions
| Ground Clearance | 1.27 ft in (385 mm) |
| Length With Bucket On Ground | 18.87 ft in (5750 mm) |
| Height To Top Of Cab | 8.86 ft in (2700 mm) |
| Wheelbase | 7.98 ft in (2430 mm) |
| Hinge Pin - Max Height | 12.8 ft in (3900 mm) |
| Reach At Max Lift And Dump | 3.29 ft in (1000 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D 50A |
| Gross Power | 110 hp (82.1 kw) |
| Power Measured @ | 2400 rpm |
| Max Torque | 261 lb ft (353.9 Nm) |
| Torque Measured @ | 1500 rpm |
| Aspiration | direct |
Operational
| Operating Weight | 21100 lb (9570.8 kg) |
| Static Tipping Weight | 9300 lb (4218.5 kg) |
| Turning Radius | 18.1 ft in (5500 mm) |
| Tire Size | front 18.4-34/14 rear 14.9-24/10 |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 16.5 mph (26.5 km/h) |
| Max Speed - Reverse | 16.5 mph (26.5 km/h) |
Hydraulic System
| Relief Valve Setting | 1350 psi (9308 kPa) |
| Pump Flow Capacity | 58.2 gal/min (220 L/min) |
