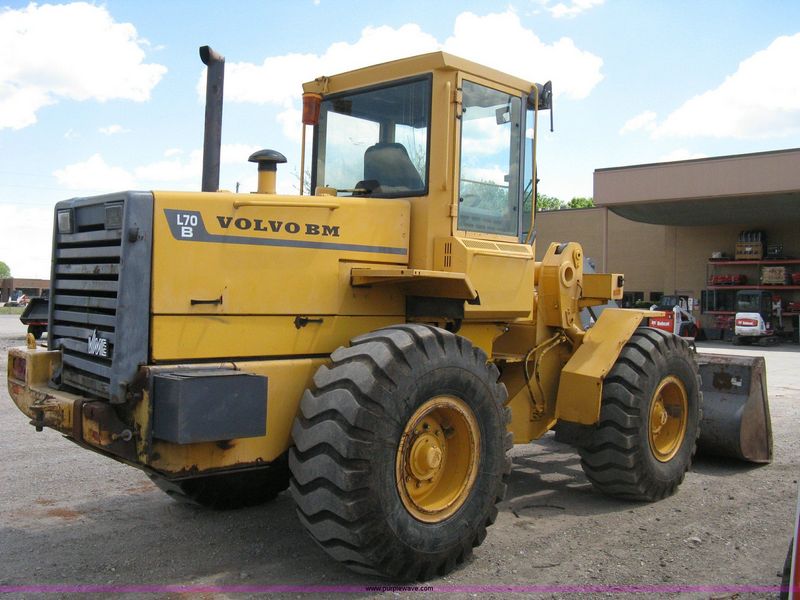

Volvo BM L70B
Browse All Volvo BM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.78 ft in (2980 mm) |
| Bucket Capacity - Heaped | 1.71 yd3 (1.3 m3) |
| Bucket Width | 8.21 ft in (2500 mm) |
| Breakout Force | 22700 lb (100.98 kN) |
Dimensions
| Ground Clearance | 1.48 ft in (450 mm) |
| Length With Bucket On Ground | 22.05 ft in (6720 mm) |
| Width Over Tires | 7.85 ft in (2390 mm) |
| Height To Top Of Cab | 10.44 ft in (3180 mm) |
| Wheelbase | 9.32 ft in (2840 mm) |
| Hinge Pin - Max Height | 12.67 ft in (3860 mm) |
| Reach At Max Lift And Dump | 2.92 ft in (890 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | TD 61 GD |
| Net Power | 118 hp (88 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 365.1 lb ft (495 Nm) |
| Displacement | 334.5 cu in (5.5 L) |
| Torque Measured @ | 1200 rpm |
| Aspiration | turbocharged |
Operational
| Operating Weight | 25400 lb (11521.3 kg) |
| Fuel Capacity | 50.2 gal (190 L) |
| Hydraulic System Fluid Capacity | 17.2 gal (65 L) |
| Static Tipping Weight | 39021.9 lb (17700 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 60 amps |
| Rear Axle Oscillation | 26 degrees |
| Tire Size | 20.5R25 |
Transmission
| Transmission Type | powershift |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 27.4 mph (44 km/h) |
| Max Speed - Reverse | 16.2 mph (26 km/h) |
Hydraulic System
| Relief Valve Setting | 3770 psi (25993.3 kPa) |
| Pump Flow Capacity | 42.3 gal/min (160 L/min) |
| Raise Time | 5.1 sec |
| Dump Time | 1.3 sec |
| Lower Time | 3 sec |
| Pump Type | load sensing |
