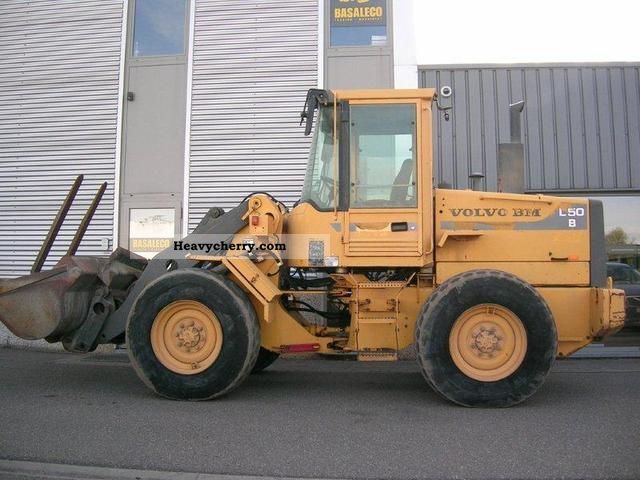

Volvo BM L50B
Browse All Volvo BM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.09 ft in (2770 mm) |
| Bucket Capacity - Heaped | 1.97 yd3 (1.5 m3) |
| Bucket Width | 7.55 ft in (2300 mm) |
| Breakout Force | 13620 lb (60.59 kN) |
Dimensions
| Ground Clearance | 1.25 ft in (380 mm) |
| Length With Bucket On Ground | 20.94 ft in (6380 mm) |
| Width Over Tires | 7.03 ft in (2140 mm) |
| Height To Top Of Cab | 9.88 ft in (3010 mm) |
| Wheelbase | 9.03 ft in (2750 mm) |
| Hinge Pin - Max Height | 12.18 ft in (3710 mm) |
| Reach At Max Lift And Dump | 3.42 ft in (1040 mm) |
Engine
| Number Of Cylinders | 4 |
| Engine Model | TD 40GA |
| Net Power | 68 hp (50.8 kw) |
| Power Measured @ | 2200 rpm |
| Max Torque | 267.8 lb ft (363 Nm) |
| Displacement | 244.1 cu in (4 L) |
| Torque Measured @ | 1400 rpm |
Operational
| Operating Weight | 17857.5 lb (8100 kg) |
| Fuel Capacity | 45 gal (170 L) |
| Hydraulic System Fluid Capacity | 28.1 gal (106 L) |
| Engine Oil Fluid Capacity | 3 gal (11 L) |
| Cooling System Fluid Capacity | 5.9 gal (22 L) |
| Static Tipping Weight | 10802.7 lb (4900 kg) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 60 amps |
| Rear Axle Oscillation | 24 degrees |
| Tire Size | 15.5R25 |
Transmission
| Transmission Type | hydrostatic |
| Number Of Forward Gears | 2 |
| Number Of Reverse Gears | 2 |
| Max Speed - Forward | 22.7 mph (36.4 km/h) |
| Max Speed - Reverse | 22.7 mph (36.4 km/h) |
Hydraulic System
| Relief Valve Setting | 3771 psi (26000.2 kPa) |
| Pump Flow Capacity | 31.8 gal/min (120 L/min) |
| Raise Time | 4.4 sec |
| Dump Time | 1.3 sec |
| Lower Time | 3.3 sec |
| Pump Type | load sensing pressure compensated hydraulic system |
