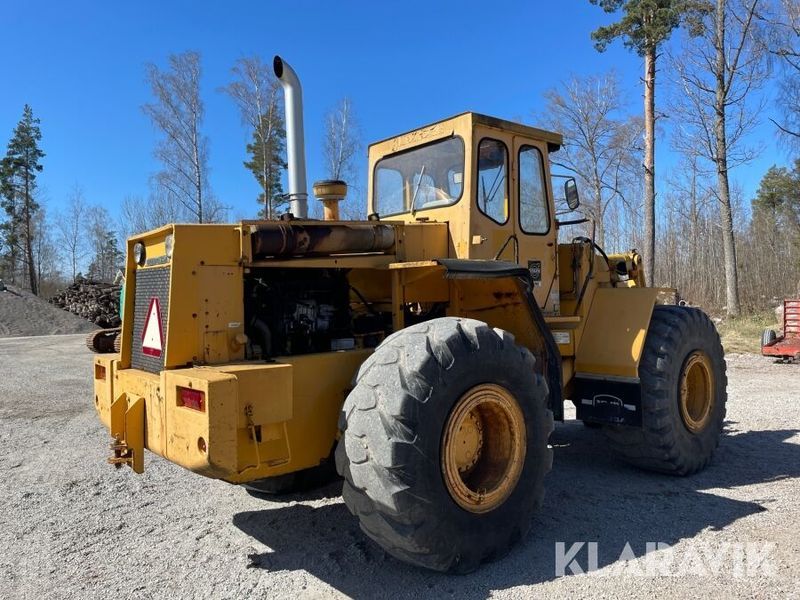

Volvo BM 1240
Browse All Volvo BM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 9.88 ft in (3010 mm) |
| Bucket Capacity - Heaped | 3.27 yd3 (2.5 m3) |
| Bucket Width | 8.21 ft in (2500 mm) |
| Breakout Force | 16160 lb (71.89 kN) |
Dimensions
| Ground Clearance | 1.48 ft in (450 mm) |
| Length With Bucket On Ground | 22.31 ft in (6800 mm) |
| Width Over Tires | 8.17 ft in (2490 mm) |
| Height To Top Of Cab | 10.01 ft in (3050 mm) |
| Wheelbase | 9.85 ft in (3000 mm) |
| Hinge Pin - Max Height | 13 ft in (3960 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D70B |
| Net Power | 145 hp (108.2 kw) |
| Gross Power | 160 hp (119.4 kw) |
| Power Measured @ | 2500 rpm |
| Max Torque | 340.8 lb ft (462 Nm) |
| Displacement | 409 cu in (6.8 L) |
| Torque Measured @ | 1600 rpm |
Operational
| Operating Weight | 27998.8 lb (12700 kg) |
| Fuel Capacity | 60.8 gal (230 L) |
| Hydraulic System Fluid Capacity | 68.7 gal (260 L) |
| Engine Oil Fluid Capacity | 4.5 gal (17 L) |
| Cooling System Fluid Capacity | 7.4 gal (28 L) |
| Transmission Fluid Capacity | 6.7 gal (25 L) |
| Front Axle/Diff Fluid Capacity | 9.6 gal (36 L) |
| Rear Axle/Diff Fluid Capacity | 8.7 gal (32.6 L) |
| Static Tipping Weight | 18078 lb (8200 kg) |
| Turning Radius | 19.3 ft in (5870 mm) |
| Operating Voltage | 24 V |
| Alternator Supplied Amperage | 25 amps |
| Tire Size | 20.5-25/16 L2.L3 |
Transmission
| Transmission Type | Full power shift 4-speed transmission |
| Number Of Forward Gears | 4 |
| Number Of Reverse Gears | 4 |
| Max Speed - Forward | 26 mph (41.9 km/h) |
| Max Speed - Reverse | 26 mph (41.9 km/h) |
Hydraulic System
| Relief Valve Setting | 1990 psi (13720.6 kPa) |
| Pump Flow Capacity | 66.1 gal/min (250 L/min) |
| Raise Time | 7.2 sec |
| Dump Time | 2.8 sec |
| Lower Time | 5.1 sec |
| Pump Type | Gear-Type Design |
