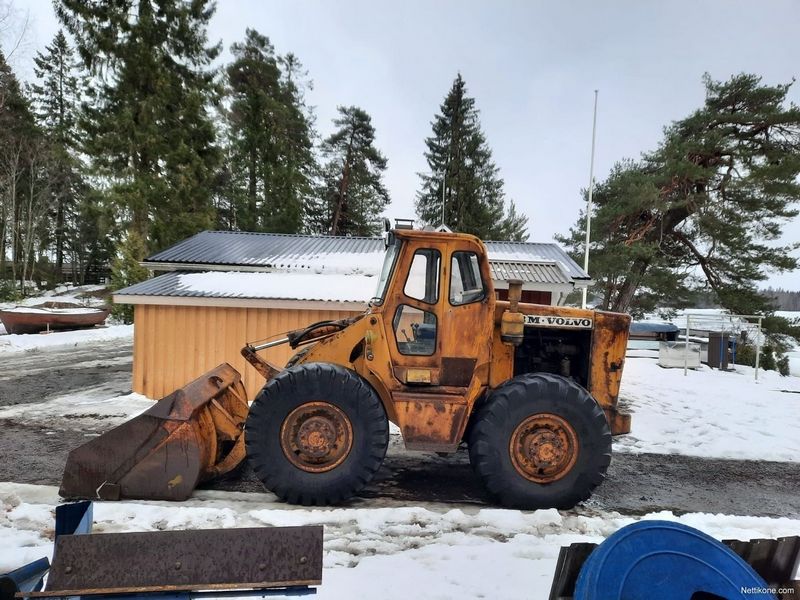

Volvo BM 854
Browse All Volvo BM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 8.76 ft in (2670 mm) |
| Bucket Width | 7.81 ft in (2380 mm) |
| Bucket Capacity - Heaped | 2.23 yd3 (1.7 m3) |
Dimensions
| Ground Clearance | 1.19 ft in (360 mm) |
| Length With Bucket On Ground | 18.48 ft in (5630 mm) |
| Width Over Tires | 7.81 ft in (2380 mm) |
| Height To Top Of Cab | 9.19 ft in (2800 mm) |
| Wheelbase | 7.65 ft in (2330 mm) |
| Hinge Pin - Max Height | 11.39 ft in (3470 mm) |
| Reach At Max Lift And Dump | 3.02 ft in (920 mm) |
Engine
| Number Of Cylinders | 6 |
| Engine Make | 2244 |
| Engine Model | D 70 A |
| Gross Power | 157 hp (117.1 kw) |
| Power Measured @ | 2400 rpm |
| Torque Measured @ | 1200 rpm |
Operational
| Operating Weight | 22487.2 lb (10200 kg) |
| Static Tipping Weight | 13227.8 lb (6000 kg) |
| Tire Size | 16X24/12 |
Transmission
| Transmission Type | power shift |
| Number Of Forward Gears | 3 |
| Number Of Reverse Gears | 3 |
| Max Speed - Forward | 26.1 mph (42 km/h) |
| Max Speed - Reverse | 26.1 mph (42 km/h) |
Hydraulic System
| Relief Valve Setting | 1990 psi (13720.6 kPa) |
| Pump Flow Capacity | 52.9 gal/min (200 L/min) |
| Raise Time | 7 sec |
| Lower Time | 5 sec |
