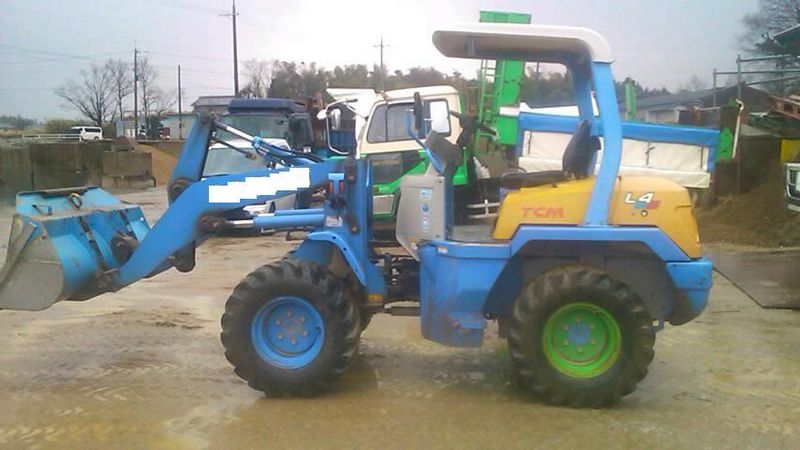

TCM L4-2
Browse All TCM or Wheel Loader Models
Contents:
Bucket
| Dump Clearance At Max Raise | 7.08 ft in (2155 mm) |
| Breakout Force | _ - (27.5 kN) |
| Bucket Capacity - Heaped | 0.53 yd3 (0.4 m3) |
| Bucket Width | 5.55 ft in (1690 mm) |
Dimensions
| Ground Clearance | 0.84 ft in (255 mm) |
| Length With Bucket On Ground | 13.59 ft in (4140 mm) |
| Height To Top Of Cab | 8.03 ft in (2445 mm) |
| Wheelbase | 5.58 ft in (1700 mm) |
| Reach At Max Lift And Dump | 2.68 ft in (815 mm) |
Engine
| Engine Make | 2334 |
| Engine Model | D1503-DI-T-K2A |
| Net Power | 28.6 hp (21.3 kw) |
Operational
| Operating Weight | 5831.3 lb (2645 kg) |
| Fuel Capacity | 13.3 gal (50 L) |
| Static Tipping Weight | 3626.7 lb (1645 kg) |
| Tire Size | 12.5/60-18-8PR L2 |
Transmission
| Transmission Type | powershift |
| Max Speed - Forward | 9.4 mph (15 km/h) |
| Max Speed - Reverse | 9.4 mph (15 km/h) |
